| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD35000-USD40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Multi Head Spot Welding Machine | Welding Material: | Steel Copper Aluminum Etc |
|---|---|---|---|
| Feature: | High Efficiency | Machine Type: | Resistance Welding Machine |
| AIndustrialpplication: | Fuel Thank Spot Welding | MOQ: | 1 Set |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | 20l/min Aluminum Iron Spot Welders,Fuel Tank Aluminum Iron Spot Welders |
||
High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
Product Introduction
The multi head spot welder is customized for welding the car fuel tank. The welding machine is is mainly composed of welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components.
This type of welding machine is widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.
Technical Parameters
| Models/Item | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 40 | 40 | 45 |
| Max. force (N) | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 |
| Max.welding capacity(MM) | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;
3. Compared with power frequency’s power supply, it has more accurate and fast current control;
4. Faster reaching the set current: the intermediate frequency can be 20 times faster than the traditional power frequency when adjusting the welding current;
Structure
Welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components
Working Environment
The multi head spot welding equipment shall be placed in an environment free from direct sunlight, rain, dry ventilation and dust. Gas, steam, chemical deposition, mold and other explosive and corrosive media that seriously affect the use of the equipment shall be avoided as far as possible, and the equipment shall be kept away from violent vibration and turbulence.

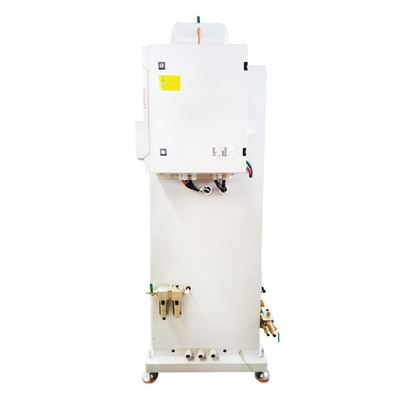

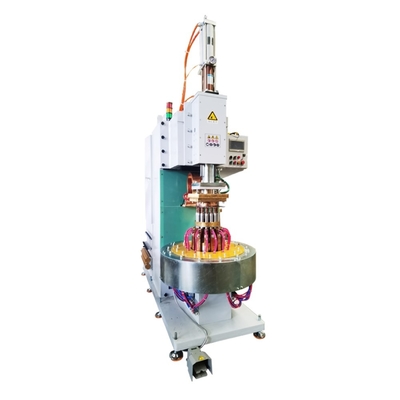

Images
Application
