Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Multi Head Spot Welding Machine Welding Material: Metal Sheet
Feature: Easy Control Machine Type: Resistance Welding Machine
Application: For Fuel Thank Spot Welding Keyword: Welding Spot Machine
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

40ka Mesh Spot Welding Machine

,

CE Spot Welding Machine


Product Description

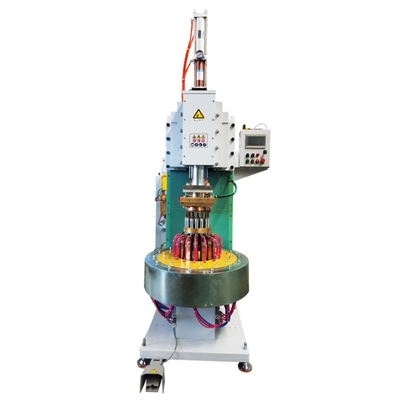

 Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 0





Cheap Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine



Product Introduction


The multi head stationary spot welder is customized for welding the car fuel tank. This stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.




 Technical Parameters



Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;



2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;



3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;



4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;





Clamp Assembly



.The floating worktable and the center positioning tooling realize the accurate positioning of the workpiece.

.The worktable depends on the floating spring to float the workpiece height in Z-axis.

.The angle adjustment axis allows the workpiece to rotate around the X axis, thereby adjusting the angle.

.The manual clamp can quickly take and place the workpiece.

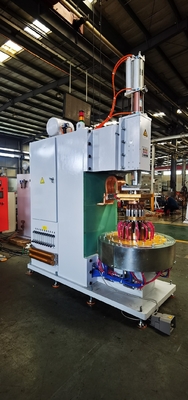

Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 1

Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 2

Safety Precautions of Electric Shock



1. When connecting the input cable, it should first be connected with the grounding conductor and verified that the connection is reliable;



2. Frequently check whether the input cable is damaged or exposed. If the cable is damaged, it should be replaced immediately. The exposed cable can cause electric shock to people;



3. Please cut off the power supply of all devices when the welding machine is not used;



4. If the workpiece needs to be grounded, please use a separate cable for direct grounding. It is not allowed to connect with the welding clamp or welding cable;



Images



Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 3




Application



Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 4


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 5
Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 6
Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 7
Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 8

Mesh Weld Welder Inverter Welded Wire Mesh Multi Head Spot Welding Machine 9
