| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD35000-USD40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Multi Head Spot Welding Machine | Welding Material: | Galvanized Steel |
|---|---|---|---|
| Feature: | Stationary Welding Machine | Machine Type: | Resistance Welding Machine |
| Application: | For Fuel Thank Spot Welding | Keyword: | Welding Spot Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | 220V Hf Welding Wire Machines,Aluminium Welding Wire Machines |
||
Aluminium 220V Hf Welding Wire Machines Multi Head Spot Welding Machine For Sale
Product Introduction

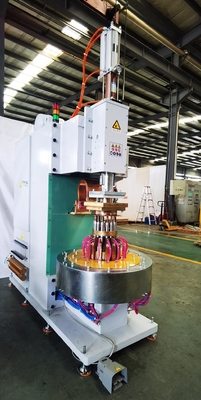

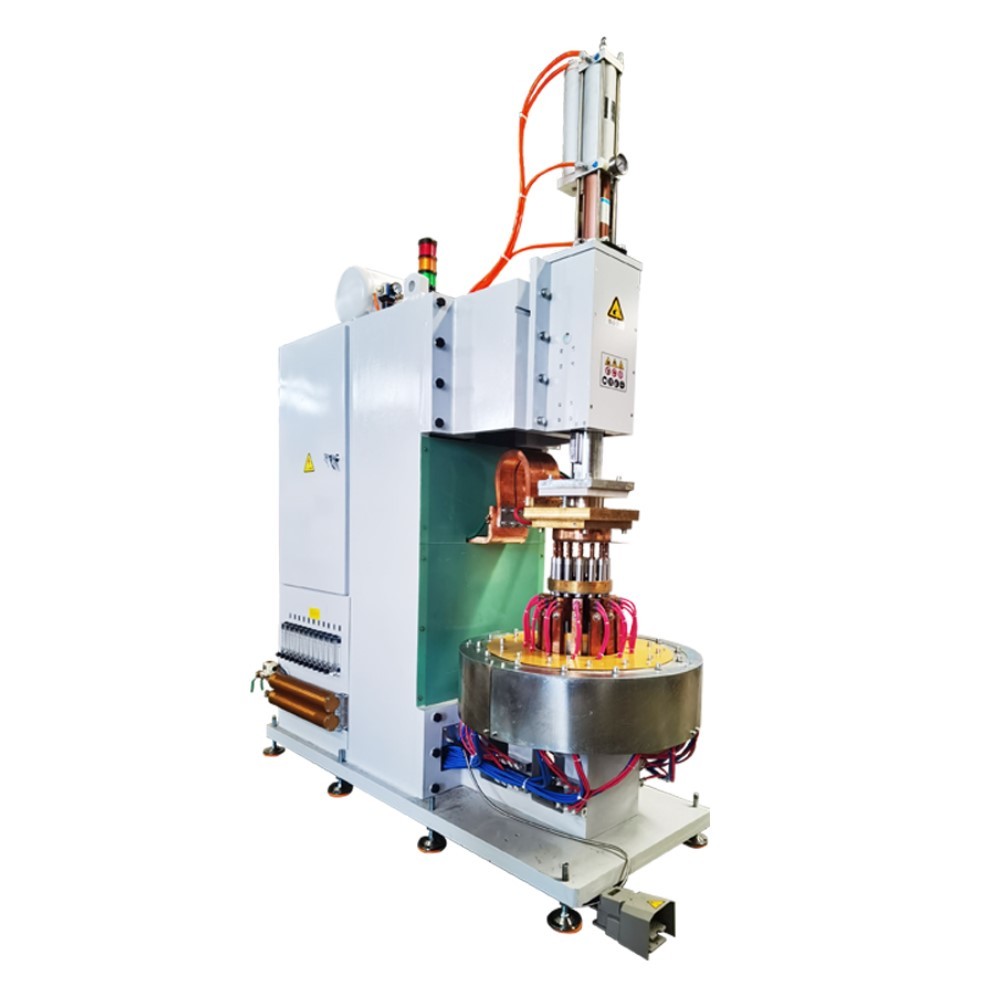

The multi head stationary spot welder is customized for welding the car fuel tank. This stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.
Technical Parameters
| Models/Item | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 40 | 40 | 45 |
| Max. force (N) | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 |
| Max.welding capacity(MM) | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;
3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;
4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;
Clamp Assembly
.The floating worktable and the center positioning tooling realize the accurate positioning of the workpiece.
.The worktable depends on the floating spring to float the workpiece height in Z-axis.
.The angle adjustment axis allows the workpiece to rotate around the X axis, thereby adjusting the angle.
.The manual clamp can quickly take and place the workpiece.
Safety Precautions of Electric Shock
1. If the workpiece needs to be grounded, please use a separate cable for direct grounding. It is not allowed to connect with the welding clamp or welding cable;
2. If you stand on the workpiece, grounding cable or electrode of another welding machine, please do not touch the electrode of the welding machine directly;
3. Only use welding equipment with good maintenance. If the parts of the welder are damaged, please repair or replace the damaged parts immediately. Maintain the parts of the equipment according to the user manual;
4. If working at heights, please wear safety equipment;
5. Keep the ground or surface of the welding site stable and safe;
6. The welding cable clamp shall be connected to the workpiece with metal with good conductivity;
7. It is prohibited to use lamps above AC36V for lighting in the workplace.
Images
Application
