|Place of Origin:||China|
|Model Number:||D(N)B--160, D(N)B--200, D(N)B--250|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Case|
|Delivery Time:||15 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50 sets/month|
|Product Name:||Multi Head Spot Welding Machine||Welding Material:||Steel Copper Aluminum|
|Feature:||Stable Welding Current||Machine Type:||Resistance Stationary Spot Welding Machine|
|Application:||Sheet Metal Spot Welding||Keyword:||Multi Spot Welding Machine|
|After Warranty Service:||Video Technical Support, Online Support And Spare Parts||After-sales Service Provided:||Free Spare Parts, Field Installation, Commissioning And Training|
250kva Semi Automatic Welding Machine,
Aluminum Rebar Mesh Welding Machine,
Cage Car Body Spot Welding Machine

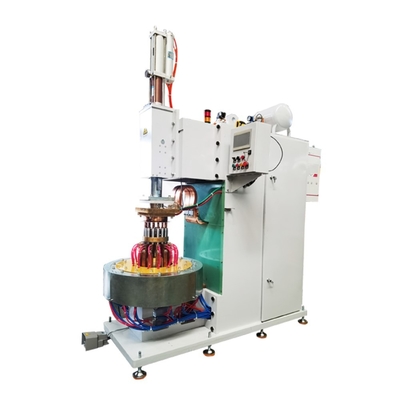

Cage Car Body Aluminum Rebar Mesh Heavy Duty Semi-Automatic Welding Machine
The multi head stationary spot welder is customized for welding the car fuel tank. This stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.
|Rated power (KVA)||160||200||250|
|Power input(V)||3φAC 380V||3φAC 380V||3φAC 380V|
|Max. short circuit current(KA)||40||40||45|
|Max. force (N)||6000||10000||15000|
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;
3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;
4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;

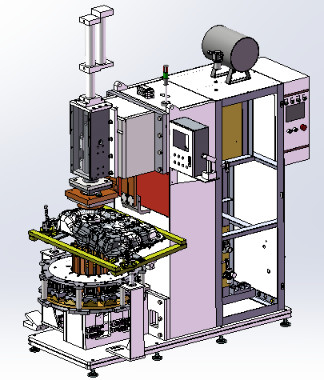

The equipment host is mainly composed of the equipment host, upper and lower electrode components, fixture components, welding controller, PLC controller, touch screen components, water and gas circuit components, etc.
.The floating worktable and the center positioning tooling realize the accurate positioning of the workpiece.
.The worktable depends on the floating spring to float the workpiece height in Z-axis.
.The angle adjustment axis allows the workpiece to rotate around the X axis, thereby adjusting the angle.
.The manual clamp can quickly take and place the workpiece.
Safety Precautions of Welding Fume and Toxic Gas
A large amount of smoke and toxic gas will be generated during welding, which will be harmful to health if inhaled. Welding in narrow places will lead to insufficient air and suffocation.
1. Keep the head away from welding smoke and do not inhale the smoke and dust generated by welding;
2. If welding is carried out in an enclosed room, please use ventilation and exhaust facilities to discharge the smoke and toxic gas generated by welding;
