|Place of Origin:||China|
|Model Number:||D(N)B--160, D(N)B--200, D(N)B--250|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Case|
|Delivery Time:||15 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50 sets/month|
|Product Name:||Multi Head Spot Welding Machine||Welding Material:||Low Carbon Steel|
|Feature:||Accurate Control System||Machine Type:||Resistance Stationary Spot Welding Machine|
|Advantage:||Welding Stability||Keyword:||Multi Spot Welding Machine|
|After Warranty Service:||Video Technical Support, Online Support And Spare Parts||After-sales Service Provided:||Free Spare Parts, Field Installation, Commissioning And Training|
Semi Automatic Welding Machine,
Low Carbon Steel Dc Press Welders,
Multi Spot Welding Machine 380V
Chinese Dc Press Welders Welder Equipment Buy Semi-Automatic Welding Machine

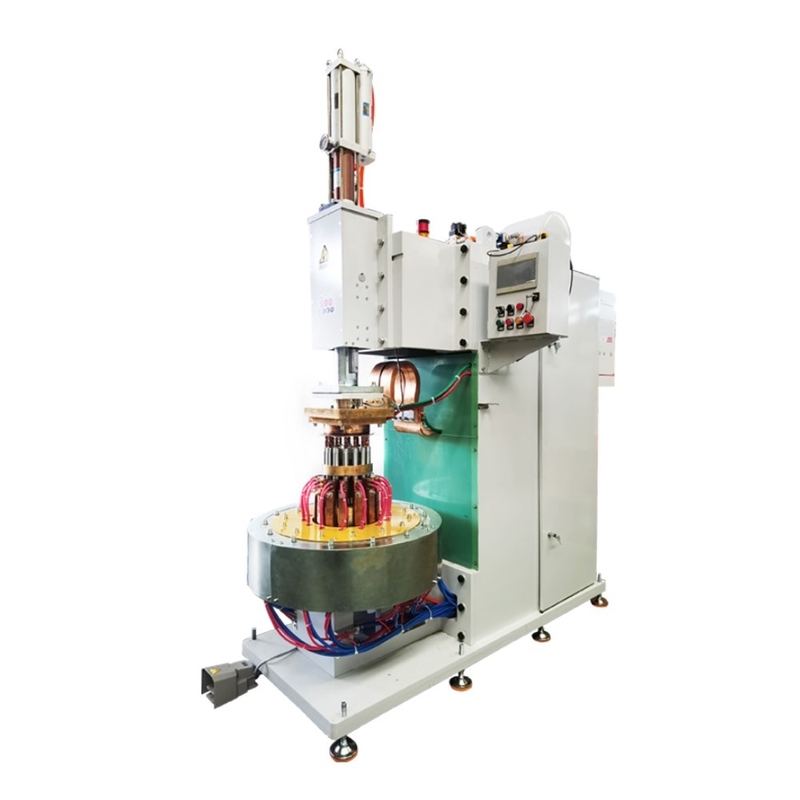

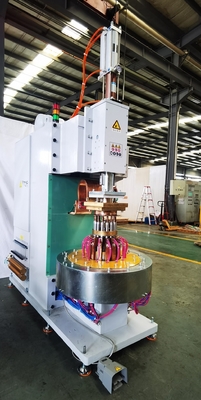

The multi head stationary spot welder is customized for welding the car fuel tank. This stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.
|Rated power (KVA)||160||200||250|
|Power input(V)||3φAC 380V||3φAC 380V||3φAC 380V|
|Max. short circuit current(KA)||40||40||45|
|Max. force (N)||6000||10000||15000|
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;
3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;
4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;
The equipment host is mainly composed of the equipment host, upper and lower electrode components, fixture components, welding controller, PLC controller, touch screen components, water and gas circuit components, etc.
.The floating worktable and the center positioning tooling realize the accurate positioning of the workpiece.
.The worktable depends on the floating spring to float the workpiece height in Z-axis.
.The angle adjustment axis allows the workpiece to rotate around the X axis, thereby adjusting the angle.
.The manual clamp can quickly take and place the workpiece.
Safety Precautions of Welding Fume and Toxic Gas
1. If ventilation equipment cannot be used, standard air supply breathing device can be used;
2. Ventilation devices and respiratory protective appliances shall be used in narrow working areas. Always check the condition around the body;
3. Read relevant knowledge about metal materials, consumables, coatings, cleaning agents, detergents and other materials that may react with welding from the metal material safety data sheet or the internal instruction documents of the manufacturing plant;
