Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Multi Head Spot Welding Machine Welding Material: Steel Copper Aluminum Etc
Feature: Microcomputer Digital Control Machine Type: Resistance Stationary Spot Welding Machine
Advantage: Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine Price Keyword: Multi Spot Welding Machine
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Microcomputer Digital Spot Welding Machine

,

Pulse Car Wire Metal Welder

,

200kva Multihead Spot Welding Machine


Product Description

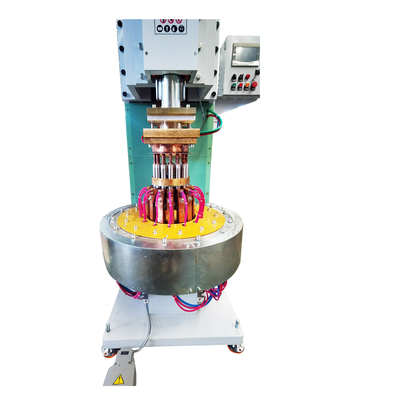

 Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 0

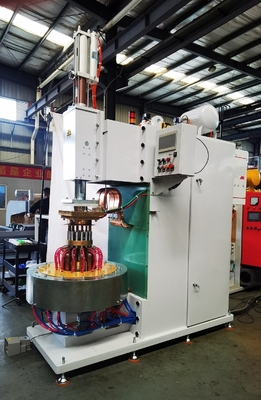

Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine Price



Product Introduction


The multi head stationary spot welder is customized for welding the car fuel tank. This stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.




 Technical Parameters



Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;



2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;



3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;



4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;





Major Structure



The equipment host is mainly composed of the equipment host, upper and lower electrode components, fixture components, welding controller, PLC controller, touch screen components, water and gas circuit components, etc.



Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 1



Clamp Assembly



.The floating worktable and the center positioning tooling realize the accurate positioning of the workpiece.

.The worktable depends on the floating spring to float the workpiece height in Z-axis.

.The angle adjustment axis allows the workpiece to rotate around the X axis, thereby adjusting the angle.

.The manual clamp can quickly take and place the workpiece.

Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 2

Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 3

Safety Precautions of Welding Fume and Toxic Gas



1. When welding at the bottom of vessels, boilers, cabins, etc., carbon dioxide, argon and other gases heavier than air will deposit at the bottom. To prevent oxygen deficiency, please fully breathe or use an air respirator;



2. Do not weld near degreasing, cleaning, spray and other operations. The hot and electric arc light will react with the dust and steam generated by these operations, producing highly toxic and irritating gases;



3. When welding on workpieces with plating or coating (such as galvanized, lead, cadmium and other materials on the surface), harmful smoke and gas will be generated. Please fully breathe or use respiratory protective equipment.





Images



Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 4

Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 5




Application



Pulse Car Wire Metal Welder Industrial Multi Head Spot Welding Machine 6


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
