| Product Name: | Water Cooling 160 Kva Transformer Foot Press Dc Multi Head Spot Welding Machine | Welding Material: | Steel Copper Aluminum Etc |
|---|---|---|---|
| Function: | Car Fuel Tank Spot Weldinng | Machine Type: | Resistance AC Welding Machine |
| Advantage: | High Effecient | Keyword: | Multi Head Spot Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | Transformer Multi Head Spot Welding Machine,450mm Spot Welding Machine,160Kva Spot Welding Machine |
||
Water Cooling 160 Kva Transformer Foot Press Dc Multi Head Spot Welding Machine
Product Introduction
The multi head spot welding machine is mainly composed of machine body, transformer, upper and lower projection welding platform (special projection welding machine), upper and lower welding arm body (special spot welding machine), gas circuit (pressurization) system, water circuit (cooling) system, controller and manual switch.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely used in aerospace, automobile and automobile parts manufacturing, new energy and power battery and other special areas of high quality welding requirements.
Major Structure
Air Circuit (Pressurization) System
The air circuit (pressurization) system is composed of compressed air filter, pressure reducing valve, barometer, oil atomizer, electromagnetic air valve, cylinder and pedal switch. According to different requirements of users, there can be no auxiliary stroke, mechanical control or electrical control of auxiliary stroke. See the air circuit (pressurization) system diagram below.

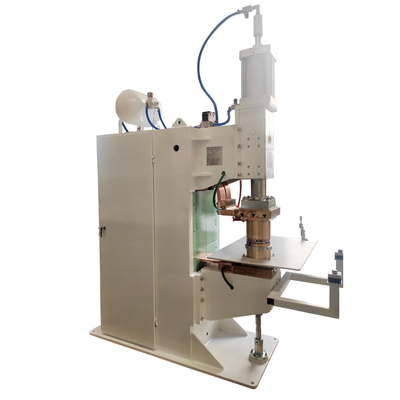

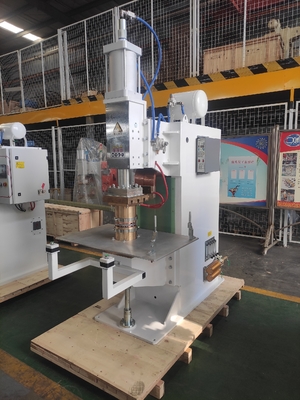

Reference Pictures
