| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD29000-USD39000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Capacitor Discharge Stud Aluminum Cookware Cnc Ac Dc Car Body Repair Spot Welder | Welding Material: | Alloy Metal Aluminum Stainless Steel |
|---|---|---|---|
| Function: | Car Fuel Tank Spot Weldinng | Machine Type: | Resistance Manual Welding Machine |
| Advantage: | Higher Product | Type: | Manual Multi Head Spot Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | 380V Auto Body Repair Spot Welder,100KVA Auto Body Repair Spot Welder,Cookware Multi Head Spot Welding Machine |
||
Capacitor Discharge Stud Aluminum Cookware Cnc Ac Dc Car Body Repair Spot Welder
Product Introduction
The multi head spot welding machine is working on the 380V/50Hz three-phase AC power supply. By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The welding machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely used in aerospace, automobile and automobile parts manufacturing, new energy and power battery and other special areas of high quality welding requirements.
Major Structure
Equipment Installation
After unpacking the equipment, check whether the welding host, control cabinet, accessories and packing documents are complete and intact according to the packing list. If the host is damaged or the accessories are incomplete, please contact the manufacturer in time. Clean the dust and anti-rust oil (grease) on the equipment with clean cotton yarn, and add anti-rust lubricating oil (grease) to the non-treated surface of the welding host and the moving mating surface.

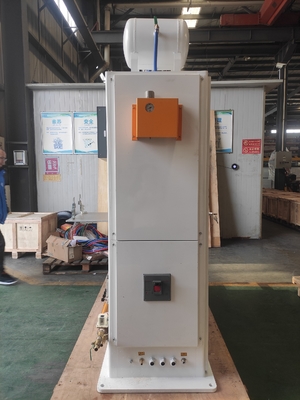

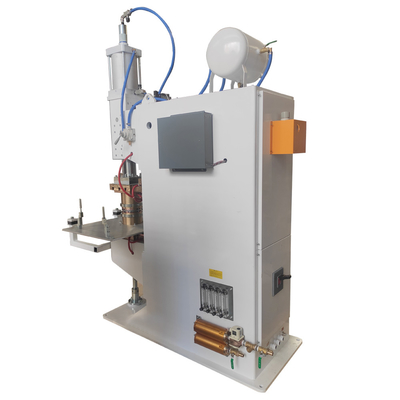

Reference Pictures
Application
