| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD44000-USD50000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Spot Welding Wire Mesh | Welding Material: | Steel Copper Aluminum Etc |
|---|---|---|---|
| Function: | Multi Spot Welding | Machine Type: | Spot Welding Machine For Wire Mesh |
| Advantage: | Multi Spot Welding Machine | Keyword: | Professional Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Automatic Welded Wire Mesh Machine,Spot Welding Wire Mesh Machine,PLC Multi Spot Welding Machine |
||
Wiremesh Multi Head Automatic Reinforcing Spot Welding Wire Welded Wire Mesh Machine
Product Introduction
The multi head spot welding machine adopts the advanced structure of foreign equipment and fully combines with a semi-automatic welding equipment developed in the Chinese market that is completely different from the currently used semi-automatic welding equipment by various manufacturers. It completely overcomes the shortcomings of high labor intensity, low production efficiency, complex operation, large spatter, weak welding, high failure rate, and low automation of the original welding machine, and can produce various 6MM series steel bars (electrode replacement is sufficient).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The cnc rebar wire mech welding machine with 17 welding heads adopts 3 welding steps with 6 welding points each time, and then automatically advances to the next row of welding points until all welding points are completed. The entire process is fully automatic controlled by PLC, equipped with monitoring and alarm.
2. The multi head spot welding machine uses direct power supply from a welding transformer to the workpiece, and regularly replaces the welding head, while also having energy-saving effects.
Major Structure

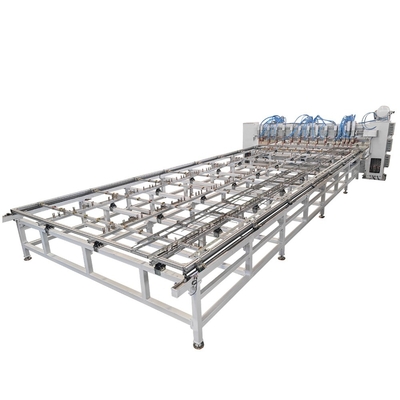

The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.

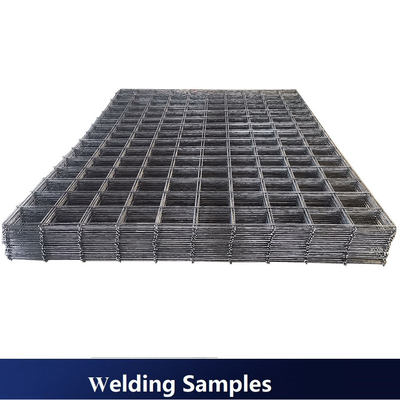

Reference Pictures
