| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD44000-USD50000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Spot Welded Wire Mesh | Welding Material: | Alloy Metal Aluminum Stainless Steel |
|---|---|---|---|
| Function: | Welding Wire Machines | Machine Type: | Spot Welded Mesh |
| Advantage: | Multi Head Spot Welding Machine | Keyword: | Platform Spot Welder |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Semiautomatic Spot Welding Machine,Galvanized Brick Force Welding Machine,Wire Mesh Spot Welded Machine |
||
Galvanized Brick Force Semiautomatic Automatic Spot Welding Machine For Wire Mesh
Product Introduction
The multi head spot welding machine adopts the advanced structure of foreign equipment and fully combines with a semi-automatic welding equipment developed in the Chinese market that is completely different from the currently used semi-automatic welding equipment by various manufacturers. It completely overcomes the shortcomings of high labor intensity, low production efficiency, complex operation, large spatter, weak welding, high failure rate, and low automation of the original welding machine, and can produce various 6MM series steel bars (electrode replacement is sufficient).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The rebar mesh welding machine adopts a pneumatic electrode that automatically adjusts the pre tightening force, with a relatively constant pre pressure. Compared to spring pre pressing, it has the characteristics of less electrode impact, less electrode wear, and more secure welding points. The spatter during the welding process is further reduced, and the electrode life is further extended.
2. The key electrical components of this product are controlled by PLC, and intelligent management is implemented for equipment operation. The touch screen operation makes the operation more convenient and concise.
Major Structure

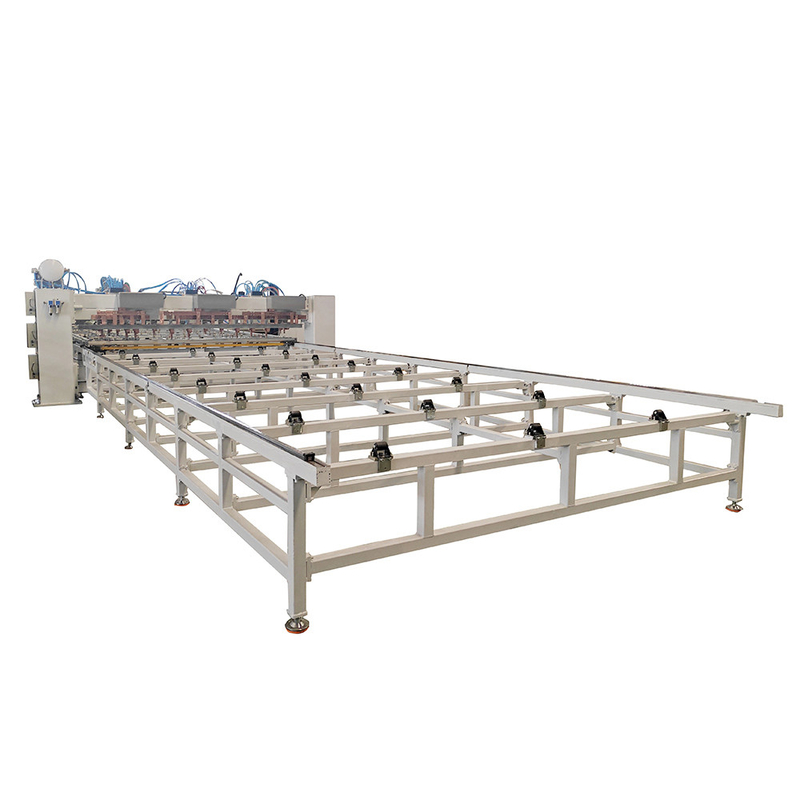

The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.
Reference Pictures
