| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | DNY |
| Minimum Order Quantity: | 1 Set |
| Price: | $600.00 - $650.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Welding Machine Portable |
|---|---|---|---|
| Machine Type: | Resistance Welding Machine | Feature: | Easy Operation |
| Welding Material: | Steel Copper Aluminum | Keyword: | Welding Spot Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Single Phase Mini Welding Machine,220V Mini Welding Machine,Portable Handheld Spot Welder |
||

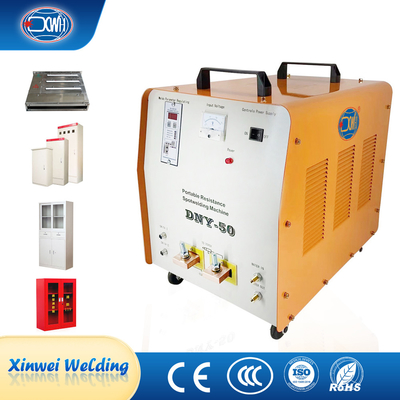

The handheld point and roll (seam) welding machine belongs to a type of resistance welding machine, which is composed of several parts such as a welding controller, welding transformer, welding cable, and welding handle. It has the characteristics of small size and light weight, and the welding machine and welding handle can be moved on the structure, breaking the old fixed electrode arm mode of old-fashioned welding machines. The machine is equipped with four rollers underneath, which are easy to move and do not require air pressure during use. It is equipped with a 2-5 meter long welding cable and a handheld welding handle, making it particularly flexible and convenient to operate. The welding parameters can be accurately adjusted, with good welding repeatability and convenient maintenance.
|
Model Parameter
|
DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated power | 80KVA | 50KVA |
35KVA
|
25KVA | 16KVA |
| Rated input power | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% |
10%
|
10% | 10% |
|
Secondary unload voltagea djustment
|
9.5～19V | 7.6～15.2V | 7.6～12.7V | 7.6～12.7V | 6.2～11V |
| Adjustment level |
2
|
2
|
1
|
4
|
4
|
| Welding time adjustment | 0～250CYC | 0～250CYC | 0～250CYC | 0～9.99s | 0～9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | (0.2~1.5)+4mm | (0.2~1.5)+3.5mm | (0.2~1.2)+3mm | (0.2~1)+3mm | (0.1~0.6)+2mm |
| Cooling method | Main transformer: water cooling Electrode: water cooling | ||||
Advantages
1. Brand new resistance welding transformer with simple circuit and low failure rate.
2. Brand new silicon steel sheet is antirust and corrosion-resistant.
3. Non-slip handrail is solid and not easy to deform.
4. Universal wheel is anti-skid and shockproof.
5. Widely used in welding stainless steel, galvanized plate, cabinet and cold plate.

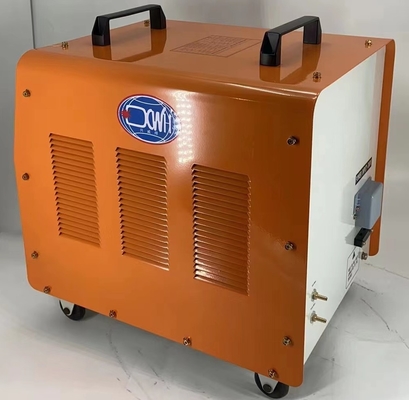

Detail Images
Accessories
Images
Please note: the spot welding machine can be custom-made according to your requirements.
