Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DNY
Minimum Order Quantity: 1 Set
Price: $600.00 - $650.00
Packaging Details: Wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Mini Welding Machine Portable Machine Type: Handheld Welder
Feature: Easy Operation Welding Material: Alloy Metal Aluminum Stainless Steel
Keyword: Manual Welding Certification: CE
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Alloy Hand Spot Welding Machine

,

Handheld Spot Welder

,

Handheld Spot Welding Machine


Product Description






Portable Diy Small Hand Spot Welding Machine Price Mini Handheld Spot Welder


Product Description


The mobile spot welding machine is a resistance welding machine and the principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding torch is connected with a welding wire, and the ground wire is connected to the copper plate. The workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.





Technical Parameters

Model Parameter
DNY-80 DNY-50 DNY-35 DNY-25 DNY-16
Rated power 80KVA 50KVA
35KVA
25KVA 16KVA
Rated input power 380V 380V 380V 380V 380V
Rated primary current 211A 132A 92A 66A 42.1A
Rated duty cycle 10% 10%
10%
10% 10%
Secondary unload voltagea djustment
9.5~19V 7.6~15.2V 7.6~12.7V 7.6~12.7V 6.2~11V
Adjustment level
2
2
1
4
4
Welding time adjustment 0~250CYC 0~250CYC 0~250CYC 0~9.99s 0~9.99s
Secondary cable length 2m 2m 2m 2m 2m
Welding thickness (0.2~1.5)+4mm (0.2~1.5)+3.5mm (0.2~1.2)+3mm (0.2~1)+3mm (0.1~0.6)+2mm
Cooling method Main transformer: water cooling Electrode: water cooling





Advantages



1. 360°Convenient Universal Wheel: Easy to drag in various welding environments


2. Humanized handle design: prevents slipping and detachment, making it easy to carry



3. Metal heavy-duty rollers: iron wheels that are durable in various environments


4. Industrial microcomputer spot welding control box: fine adjustment of welding current; Excellent welding quality


5. Industrial grade water-cooled welding gun dedicated copper core wire: good conductivity; Multiple sheath safety protection


6. The portable spot welder with roller welding gun can roll weld various stainless steel filters, mat shaped nets, and thin iron sheets





Detail Images

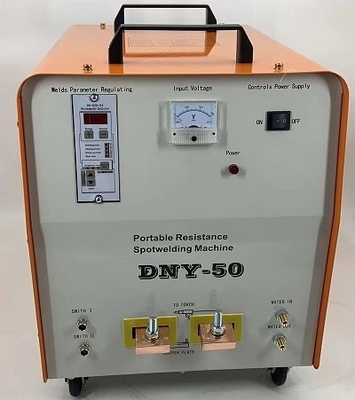

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 0


Accessories

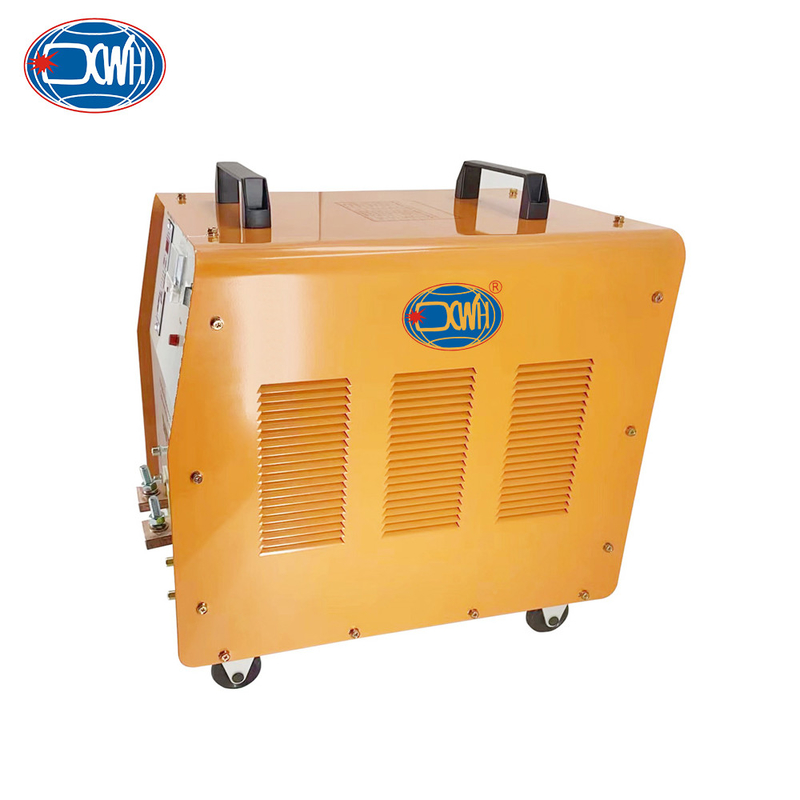

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 1



Images



Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 2



Please note: the mobile spot welding machine can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2. Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3. Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4. How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6. How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8. What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 3
Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 4Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 5

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 6

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 7

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 8

Portable Diy Small Hand Spot Welding Machine Mini Handheld Spot Welder 9
