| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD70000-USD90000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Spot Welding Machine Automatic | Welding Material: | Low Carbon Steel .stainless Steel |
|---|---|---|---|
| Function: | For Welding Motors And Generator Sets | Machine Type: | Resistance Welding Machine |
| Application: | Metal Spot Welding | Keyword: | Point Welding Machine |
| Feature: | Fully Automatic | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| High Light: | Semi Automatic Spot Welding Machine,Motors Spot Welding Machine |
||
Other Welding Equipment Semi Automatic Multi Head Spot Welding Machine Price
Product Introduction
Multi point automatic welding machine for circular rings/integral sealing welding machine for instrument shells, specially designed for welding special parts of motors and generator sets. The multi head welding machine has stable welding quality, simple operation, convenient maintenance, and fast and convenient electrode replacement.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The upper and lower electrodes are pressurized by a cylinder, making pressure adjustment convenient and accurate;
2. Two sets of welding systems are used to weld 6 points of the straight section of the workpiece, 96 welding points on the inner circle of the straight section and 144 welding points on the outer circle of the arc section of the workpiece. Two sets of welding assemblies are used to weld 6 welding points on the straight section. After completing each set of welding points, the indexing rotation mechanism rotates to the next set of welding points to weld the workpiece. This mechanism mode can achieve automation, reduce labor intensity, and ensure the consistency of welding points;
3. Adopting servo indexing to make welding indexing more accurate;
Major Structure

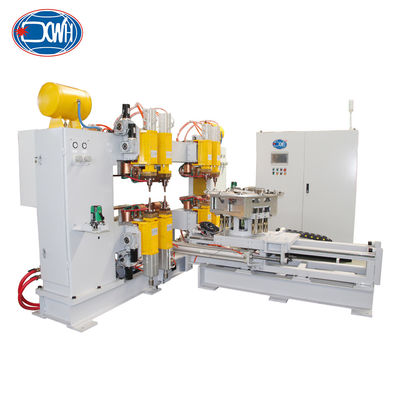

The multi point automatic welding machine’s host consists of 2 sets of upper and lower welding assembly mechanisms, positioning fixtures, indexing and rotating mechanisms, welding controllers, welding transformers, cooling circulating water circuits, air circuit systems, and other mechanisms.

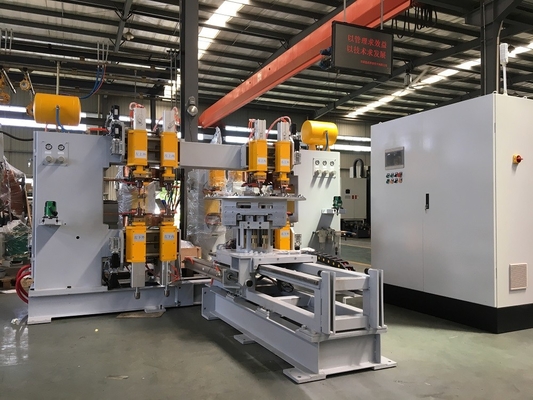

Reference Pictures
Application
