| Product Name: | Spot Welding Machine Automatic | Welding Material: | Stainless Steel |
|---|---|---|---|
| Function: | For Welding Motors And Generator Sets | Machine Type: | Automatic Multi Spot Welding Machine |
| Application: | Sheet Metal Welding | Keyword: | Point Welding Machine |
| Feature: | Projection Spot Welding | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | 3 Phase Aluminum Spot Welders,Automatic Aluminum Spot Welders |
||
3 Phase Aluminum Welder Spot Welders Multi Head Spot Welding Machine Automatic
Product Introduction
Multi point automatic welding machine for circular rings/integral sealing welding machine for instrument shells, specially designed for welding special parts of motors and generator sets. The multi head welding machine has stable welding quality, simple operation, convenient maintenance, and fast and convenient electrode replacement.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The upper and lower electrodes are pressurized by a cylinder, making pressure adjustment convenient and accurate;
2. Two sets of welding systems are used to weld 6 points of the straight section of the workpiece, 96 welding points on the inner circle of the straight section and 144 welding points on the outer circle of the arc section of the workpiece. Two sets of welding assemblies are used to weld 6 welding points on the straight section. After completing each set of welding points, the indexing rotation mechanism rotates to the next set of welding points to weld the workpiece. This mechanism mode can achieve automation, reduce labor intensity, and ensure the consistency of welding points;
3. Adopting a direct solenoid valve to accelerate the reaction speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss;

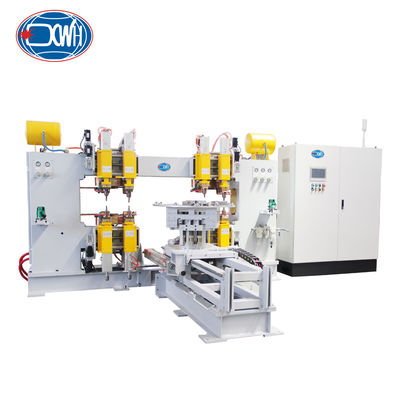

Major Structure

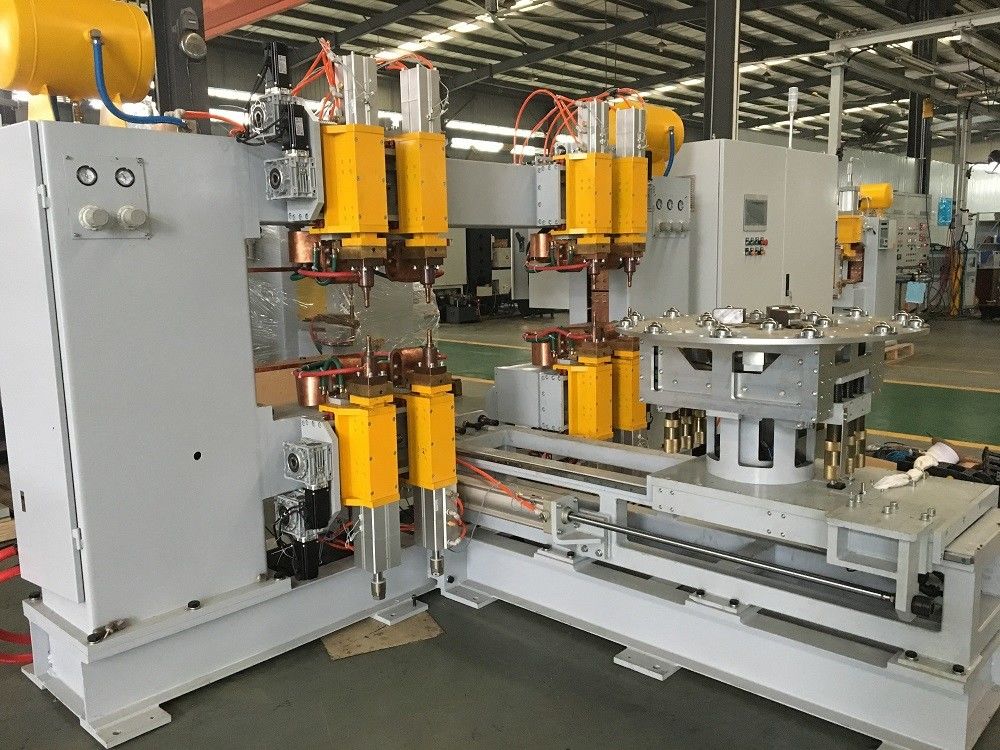

Reference Pictures
Application
Technical requirements for product welding
1) Welding material: 1.5mm stainless steel plate+10mm thick, 15mm wide stainless steel strip+1.5mm stainless steel plate.
2) Welding points: As shown below, there are 96 points for the inner ring, 144 points for the outer ring, and 6 points for the straight line segment, with a total of 24 circles
