| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD6000-USD7000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Spot Welder Table Machine | Machine Type: | Pedal Welding Machine |
|---|---|---|---|
| Application: | Sheet Metal Welding | Function: | Resistance Spot Welding |
| Keyword: | Welding Spot Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| High Light: | Precision Spot Welding Table Machine,Aluminum Spot Welding Table Machine,Aluminum Spot Welding Machine |
||

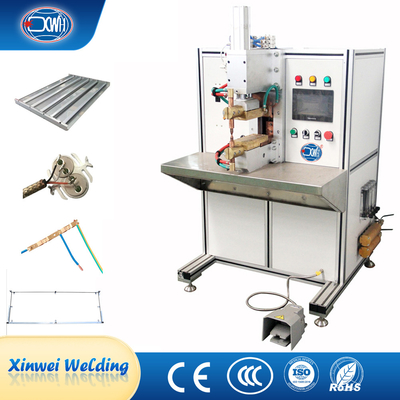

Aluminum Welders Welding Equipment Precision Spot Welding Welder Table Machine
Product Introduction
The medium frequency table spot welding machine adopts a human-machine interface touch screen, which is digitally controlled and easy to operate. Different fixtures can be configured according to customer requirements to meet various workpiece welding needs, and automated specialized machines can be designed and manufactured to improve production efficiency.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1)The upper electrode is pressurized with a dual head cylinder, making pressure adjustment convenient and accurate;
(2)The upper electrode moves vertically up and down, and has a smooth adjustable working stroke. The lower electrode can be adjusted vertically;
(3)Adopting a direct solenoid valve to accelerate the reaction speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss;
(4)The descent and ascent speed of the pressurization head can be adjusted arbitrarily, easing the impact of pressurization on the work and reducing noise;
Major Structure

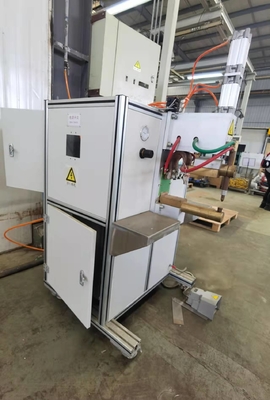

Reference Pictures
