| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD8500-USD95000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Electronic Component Welding Machine | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Application: | Electronic Production | Function: | Resistance Spot Welding |
| Keyword: | Resistance Spot Welding Equipment | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Resistance Stainless Steel Spot Welder,Stainless Steel Spot Welder Table,380V Electronic Component Welding Machine |
||

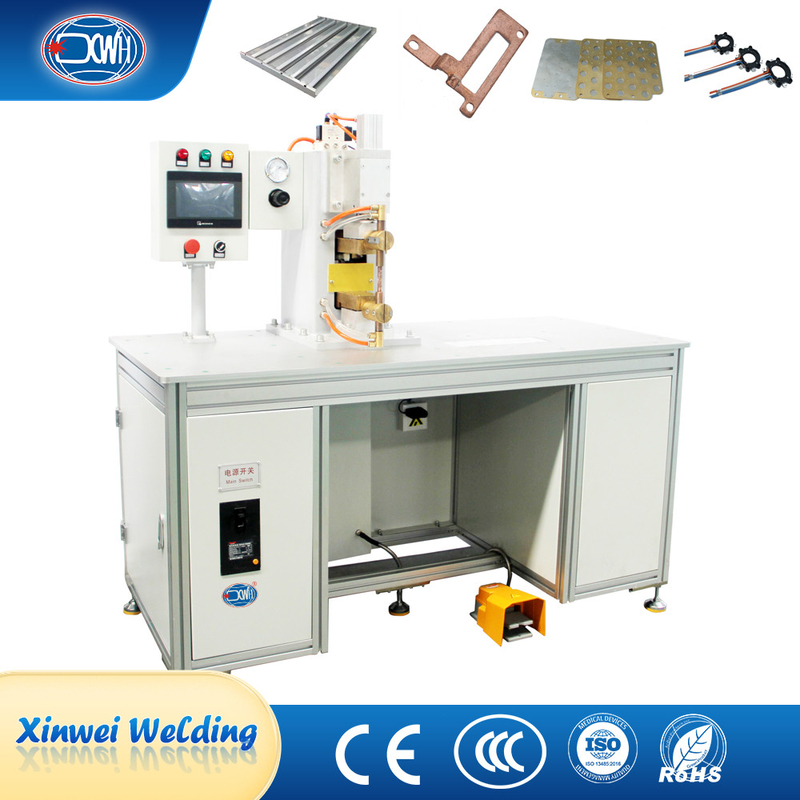

Resistance Stainless Steel Spot Welder Table Electronic Component Welding Machine
Product Introduction
The electronic component desktop spot welding machine consists of a profile frame, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The upper electrode is pressurized by a cylinder, making pressure adjustment convenient and accurate
2. The upper electrode moves vertically up and down, and has a smooth adjustable working stroke
3. Adopting a direct solenoid valve to accelerate action response speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss
4. The descent and ascent speed of the pressurization head can be adjusted arbitrarily, easing the pressure impact on the work and reducing noise
Major Structure

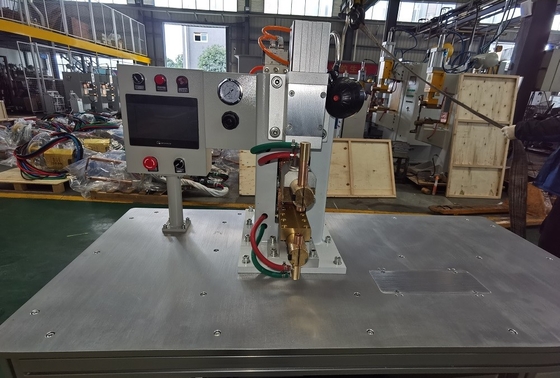

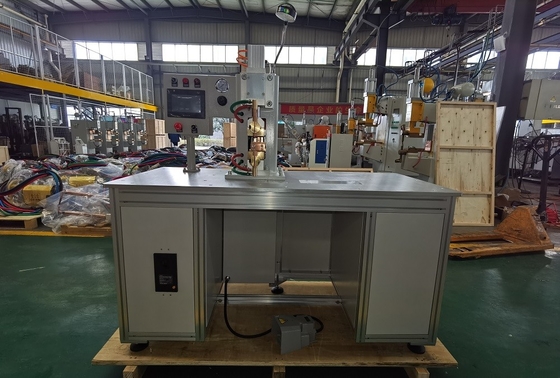

Reference Pictures
