Robotic Arm 180KVA 2000mm Table Spot Welding Machine For Sheet Metal

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: DNB
Minimum Order Quantity: 1
Price: USD 5000-USD 8000
Packaging Details: Wooden Case
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Multipoint Table Spot Welding Machine Spot Welder Frequency: 50HZ/60HZ
Power: 180KVA Voltage: 380V Or 480V Or Custom Made
Rated Duty Cycle: 50% Usage: Table Spot Welding
Platform Distance: 2000mm Rated Capacity: 25/35/50 KVA
High Light:

180KVA table spot welding machine

,

2000mm table spot welding machine

,

180KVA spot welder for sheet metal


Product Description

Robotic Arm Platform Stainless Steel Sheet Metal Cabinet Multipoint Table Spot Welding Machine Spot Welder

Product Description

Main Features


1. Power frequency AC welding power source or intermediate frequency inverter DC power source can be used;

2. There is no need to move the cabinet frequently, the welding head can be flexibly moved to any point in the welding platform under the drive of the swing arm, which reduces the labor intensity; ·

3. The surface of the laminating platform can be flat and close to no trace, and there is no welding trace after spraying;

4. The unique large-size welding platform avoids the distortion of the workpiece after welding and reduces the labor intensity;

5. Open cabinets can be welded, and semi-closed cabinets can also be welded;

6. Double swing arm, lifting platform spot welder can greatly expand the welding space;

7. Suitable for welding low carbon steel, galvanized sheet, aluminum sheet, stainless steel sheet, etc.





Technical parameters



DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine



Rated Capacity: 50KVA~200KVA,

Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz

Air Source Pressure: =0.5Mpa;

Electrode Force: =2.2KN

Welding Table Size:800mm(W) ×1000mm(L);

Welding Table Height: 750~950mm (200mm Stroke);

Welding Gun Type: Horizontal Gun or Vertical Gun

(Optional);

Welding Gun Length: 395mm;

Machine Size : L:1580mm×W:1000mm×H:1900mm;

Machine Weight: 850kg

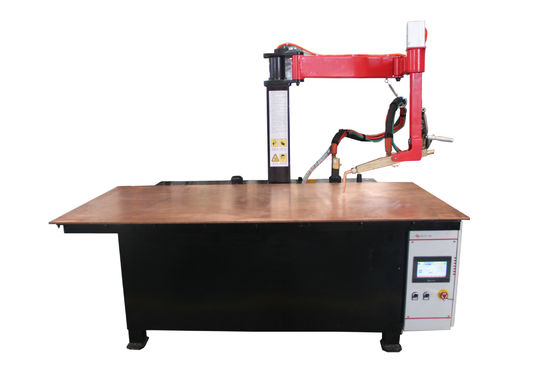

Robotic Arm 180KVA 2000mm Table Spot Welding Machine For Sheet Metal 0



Company Information

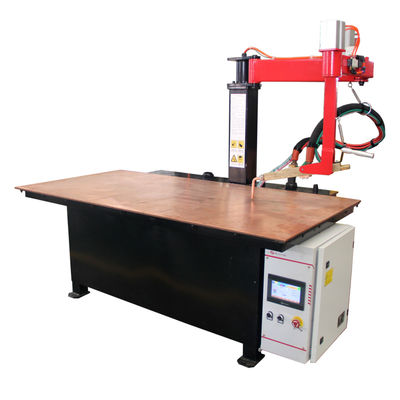

Robotic Arm 180KVA 2000mm Table Spot Welding Machine For Sheet Metal 1
Robotic Arm 180KVA 2000mm Table Spot Welding Machine For Sheet Metal 2
Robotic Arm 180KVA 2000mm Table Spot Welding Machine For Sheet Metal 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
