Double Head 50HZ 2.2KN Table Top Spot Welding Machine Inverter DC
Brand Name:
XWH
Model Number:
DN(B)-160, DN(B)-200, DN(B)-250
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD 8000-USD9000
Supply Ability:
500 sets/month
Delivery Time:
105 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
50HZ table top spot welding machine
,2.2KN table top spot welding machine
,2.2KN inverter spot welding machine
Product Name:
Crank Arm Mobile Computer Case Spot Welding Machine
Application:
Metal Box Welding
Function:
Resistance Spot Welding
Welding Material:
Stainless Steel Copper Aluminum
Rated Duty Cycle:
50%
Usage:
Table Spot Welding
Platform Distance:
2000mm
Rated Capacity:
160/200/250 KVA
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
Product Description

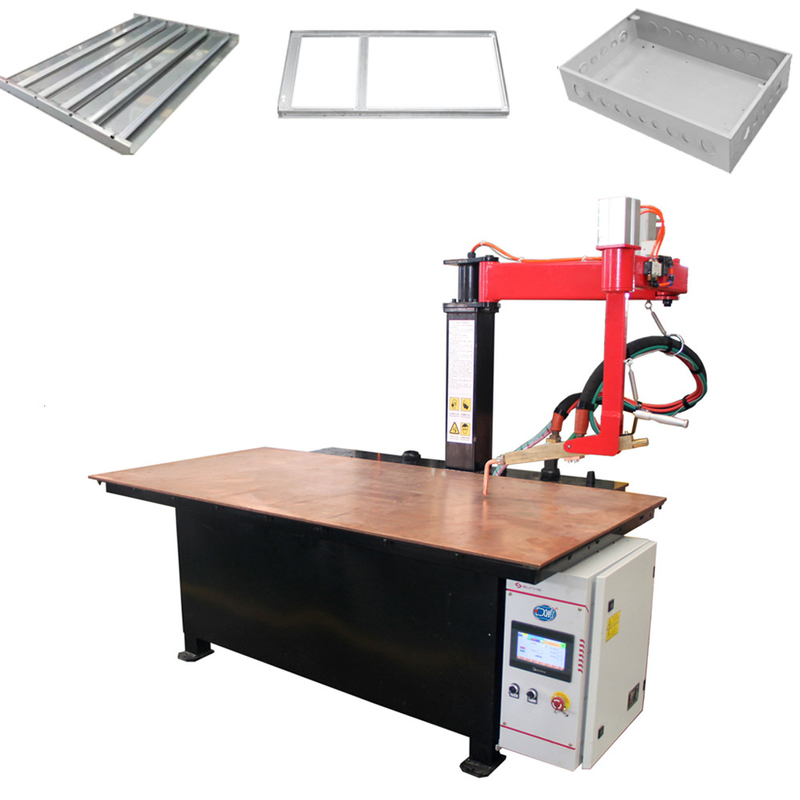

Double Head Crank Arm Mobile Computer Case Spot Welding Machine With Medium Frequency Power Source
Chengdu Xingweihan Welding Equipment Co., Ltd. is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our main product: Portable Spot Welder, Suspension Spot Welding Machine, Resistance Spot Welding Machine, Robotic Welding Gun, Multi head spot welding machine, Nut Feeder, Spring Balancer, Water Chiller, Micro-computer resistance controller, Transformer, etc.
Product Introduction:

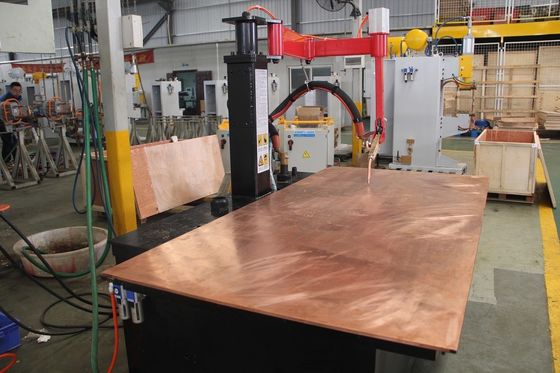

Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Advantages:
1. Power frequency AC welding power source or intermediate frequency inverter DC power source can be used;
2. There is no need to move the cabinet frequently, the welding head can be flexibly moved to any point in the welding platform under the drive of the swing arm, which reduces the labor intensity; ·
3. The surface of the laminating platform can be flat and close to no trace, and there is no welding trace after spraying;
4. The unique large-size welding platform avoids the distortion of the workpiece after welding and reduces the labor intensity;
Technical Parameters:
Rocker Arm galvanized sheet Table Spot Welding Machine
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Table Size:800mm(W) ×1000mm(L);
Welding Table Height: 750~950mm (200mm Stroke);
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
General Structures:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
