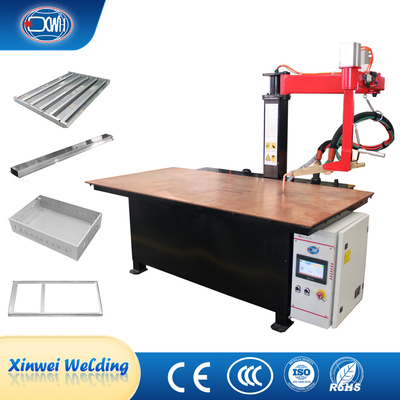

CE Industrial AC220V Rocker Arm Spot Welding Machine Mobile Type
Brand Name:
XWH
Model Number:
DNB
Place of Origin:
China
Certification:
CE, ISO
Minimum Order Quantity:
1
Price:
USD 5000-USD 8000
Supply Ability:
500 sets/month
Delivery Time:
10 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
AC220V rocker arm spot welding machine
,CE rocker arm spot welding machine
,AC220V industrial spot welding machine
Product Name:
Crank-Arm Flat Table Mobile Type Spot Welder
Frequency:
50HZ/60HZ
Power:
130KVA
Voltage:
380V/220V
Rated Duty Cycle:
50%
Usage:
Table Spot Welding
Platform Distance:
1000mm
Rated Capacity:
25/35/50 KVA
Product Description

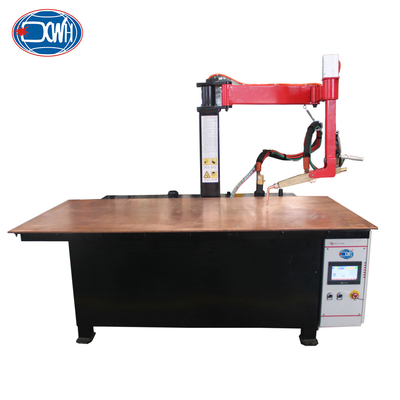

Crank-Arm Flat Table Mobile Type Spot Welder
Product Description
Main Features
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
Technical parameters
DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
