| Product Name: | Multi Point Spot Welding Machine | Application: | Metal Spot Welding |
|---|---|---|---|
| Function: | Automatic Welding | Machine Type: | Resiatance Projection Welding Machine |
| Feature: | Multi Spot Welding | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| High Light: | Gantry Spot Welding Machine,Galvanized Door Edge Welding Machine,Multi Point Head Spot Welder |
||

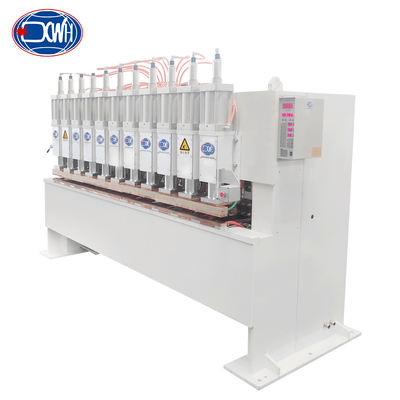

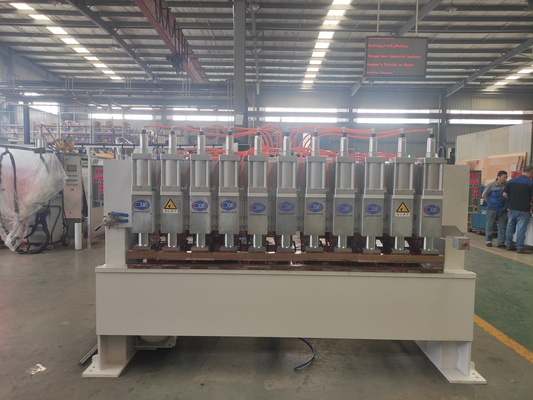

Gantry Galvanized Door Edge Projection Multi Point Head Spot Welding Machine
Product Description
The automatic gantry welding machine consists of a gantry frame, welding transformer, pneumatic transmission device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. Suitable for the welding, cross welding, and continuous welding of multi-point carbon steel, low alloy steel, stainless steel, galvanized, nickel plated, guardrail mesh, screen mesh, and hardware wire products.
Technical Parameters
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Advantages
1. The electrode pressurization action of the welding machine uses compressed air to achieve stable welding pressure. Each electrode pressure is individually adjustable, and the stroke of each cylinder can be adjusted separately. The upper electrode moves vertically to complete the welding process;
2. It is possible to weld multiple welding points evenly at once;
3. The descent and ascent speed of the pressure head can be adjusted arbitrarily, easing the pressure impact on the workpiece and reducing noise;
4. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance;
Product Structure
Images
