Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
Minimum Order Quantity: 1
Price: USD15000-USD25000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Multi Point Spot Welding Machine Application: Metal Spot Welding
Function: Automatic Welding Machine Type: Resiatance Pneumatic Projection Welding Machine
Feature: Multi Spot Welding Welding Material: Aluminum, Stainless Steel, Metal Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

PLC Spot Welding Equipment

,

Multi Head Spot Welding Equipment

,

Automated Gantry Projection Spot Welder


Product Description



Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine



Product Description



The automatic gantry welding machine consists of a gantry frame, welding transformer, pneumatic transmission device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. Suitable for the welding, cross welding, and continuous welding of multi-point carbon steel, low alloy steel, stainless steel, galvanized, nickel plated, guardrail mesh, screen mesh, and hardware wire products.




Technical Parameters



Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200

Max.Welding Capaciry A3 steel

MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6





Advantages



1. The upper electrode is pressurized by a cylinder, making pressure adjustment convenient and accurate;



2. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance;



3. The main circuit adopts high-power thyristor components, with strong, stable, and reliable output power supply;



4. The operation is controlled by a foot switch, which has high productivity and low labor intensity;



5. Adopting a microcomputer fast response touch controller, fully digital control, simple, clear, and convenient operation interface. Its unique automatic detection, compensation, and effective prevention of poor phenomena such as desoldering and false soldering;





Product Structure

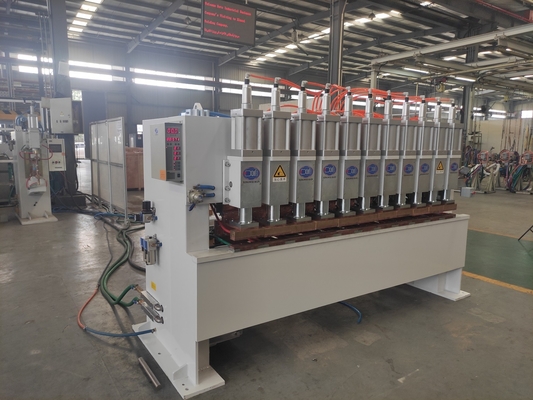

Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 0

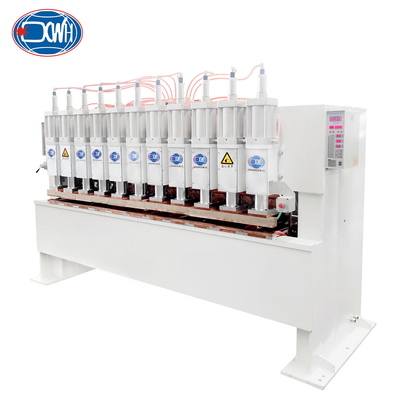

Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 1



Images



Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 2




Application


Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 3
Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 4


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 5
Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 6
Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 7
Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 8

Automated Gantry Projection Multi Point Head Row Spot Welding Equipment Machine 9
