| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
| Minimum Order Quantity: | 1 |
| Price: | USD15000-USD25000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Multi Point Spot Welder | Application: | Metal Spot Welding |
|---|---|---|---|
| Function: | Automatic Welding | Machine Type: | Resiatance Pneumatic Projection Welding Machine |
| Feature: | Gantry Welding Machine/Row Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Automatic Resistance Projection Spot Welder,Automatic Aluminum Spot Welding Machine,Multi Head Resistance Welding Machine |
||

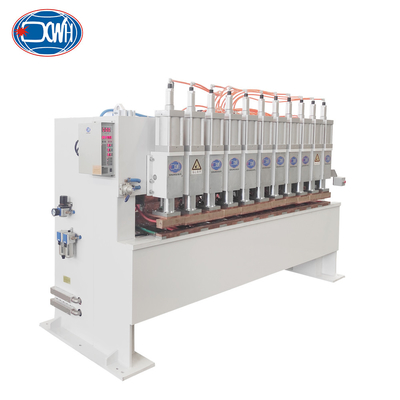

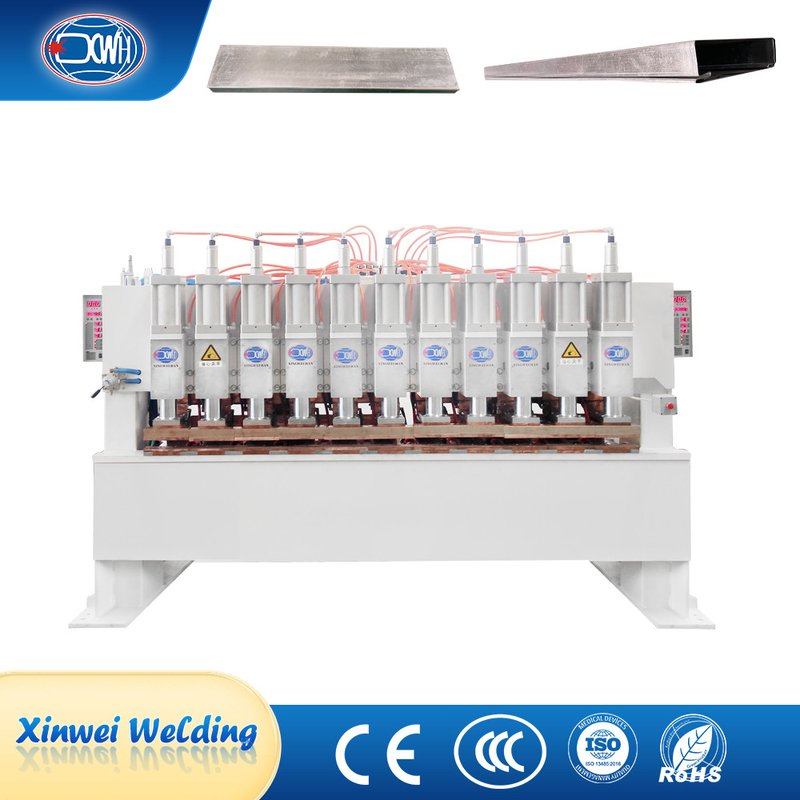

Automatic Resistance Projection Multi Point Head Spot Welding Machine Price
Product Description
The projection welding machine is composed of components such as a frame, conductive sheet, welding head moving mechanism, electrode assembly, welding transformer, welding machine controller, air circuit system, cooling water system, etc. Welding principle: Press the start button and weld the welding cylinder from left to right (programmable) in sequence until all welding points are completed. The welding pressure and welding current of each welding head are independently adjustable.
Technical Parameters
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Advantages
1. The upper electrode is pressurized by a cylinder, making pressure adjustment convenient and accurate;
2. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance;
3. The main circuit adopts high-power thyristor components, with strong, stable, and reliable output power supply;
4. The operation is controlled by a foot switch, which has high productivity and low labor intensity;
5. Adopting a microcomputer fast response touch controller, fully digital control, simple, clear, and convenient operation interface. Its unique automatic detection, compensation, and effective prevention of poor phenomena such as desoldering and false soldering;
Product Structure
Images
Application
