Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
Minimum Order Quantity: 1
Price: USD4500-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Projection Welding Machine Application: Galvanized Sheet Welding Machine
Function: Resistance Welding Machine Type: Pedal Welding Machine
Feature: High Efficiency Welding Material: Steel Copper Aluminum
Max. Welding Capacity: 6+6mm After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Horizontal Spot Welding Machine

,

Galvanized Sheets Spot Welding Machine

,

Galvanized Projection Spot Welding Machine


Product Description

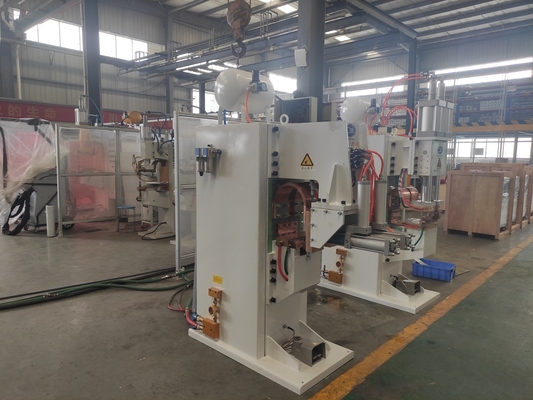

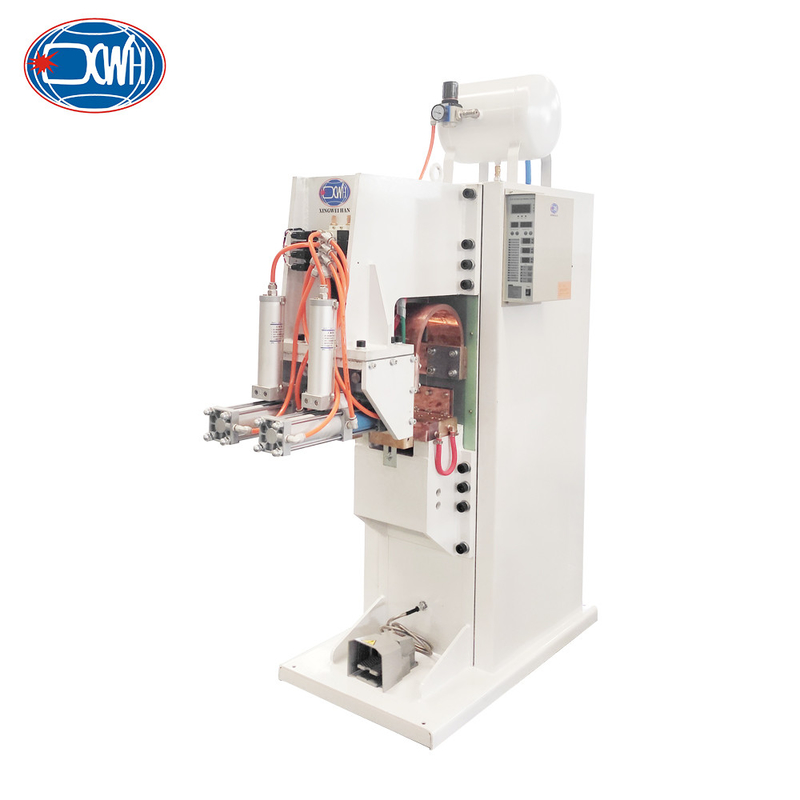

Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding



Product Description



The metal leaf welding machine's welding action principle: Press the start button and the equipment action will be completed by the welding controller without manual intervention.Until welding point is completed. Each welding head completes projection welding of 4 welding points. A total of 8 protrusions were welded in one clamping process. Easy to ensure the welding quality of each welding point. The welding pressure and welding current of each welding head are independently adjustable.



The movement direction of each welding head is horizontal, and transverse welding points can be welded. Especially suitable for large workpieces, achieving efficient welding when installation is inconvenient.




Technical Parameters



Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200

Max.Welding Capaciry A3 steel

MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6





Advantages



1. The body is designed for shock resistance, seismic resistance, and high rigidity, and is finely machined to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the frame to ensure the rigidity of the equipment and minimal deformation during the welding process, ensuring the stability of welding and the safety of manual use.



2. The upper electrode is pressurized by a gas-liquid pressure cylinder, making pressure adjustment convenient and accurate.



3. The backup dedicated air storage tank for welding machines is beneficial for reducing the fluctuation of welding pressure and ensuring the stability of welding force;



4. The upper electrode moves horizontally forward and backward, and the welding stroke and workpiece operation stroke are independent, while the lower electrode is fixed; Easy to operate.





Product Structure





Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 0





Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 1



Images



Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 2



Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 3




Application


Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 4
Galvanized Sheets Projection Spot Welding Machine For Horizontal Welding 5

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
