Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
Minimum Order Quantity: | 1 Set |
Price: | USD48000-USD58000 |
Packaging Details: | Non-fumigation Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 sets/month |
Product Name: | Spot Welding Machine Automatic | Application: | Welding Heater Housing |
---|---|---|---|
Function: | Automatic Welding | Machine Type: | Automatic Multi Spot Welding Machine |
Keyword: | AC Welding Machine | Welding Material: | Stainless Steel And Carbon Steel |
Feature: | Fully Automatic | Warranty: | 1 Year Guarantee |
After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
High Light: | Cnc Resistance Welders,Heater Housing Spot Welder,380V Cnc Point Welding Machine |
Cnc Resistance Welders Heater Housing Spot Welder Point Welding Machine Automatic
Product Description:

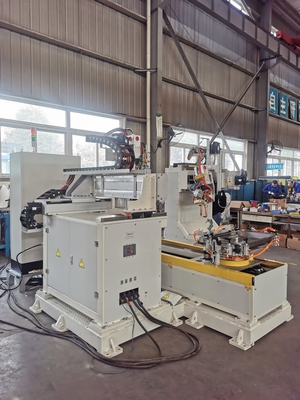

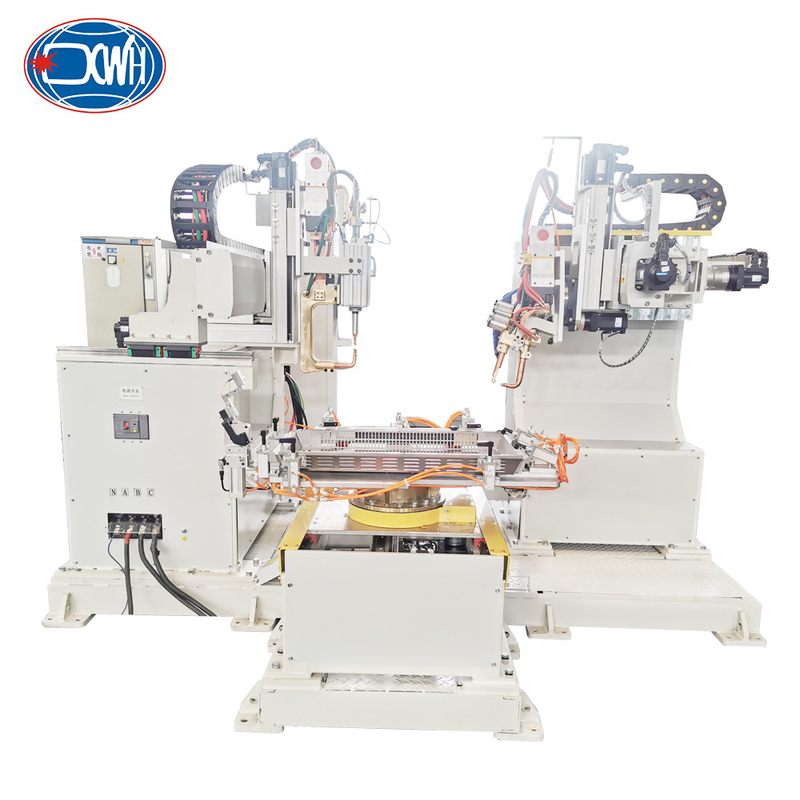

The heater housing welding machine is mainly designed for welding the heater shell, and the shell material is mainly carbon steel and stainless steel. The size of the workpiece is 502mm x 433mm x 70mm or similar, and the thickness of the plate is about 0.6mm.
Advantages:
1. Control system: composed of main control cabinet, touch screen, and operation box. The main control cabinet is placed independently, and the touch screen is installed on the fence. This device is equipped with a three color light sound and light warning device.
2. X-type welding clamp moving mechanism: composed of linear module, servo motor, rotating platform, X-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing. The rotating platform can rotate the welding tongs to the desired angle, making adjustment more convenient and concise.
3. C-type welding clamp moving mechanism: composed of linear module, servo motor, C-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing.
4. Fixture: composed of positioning blocks, clamping cylinders, adjustment plates, etc. This fixture can meet the welding needs of three types of workpieces (positioning blocks need to be adjusted).
5. Tool moving mechanism: composed of linear guide rail, servo motor, rotary servo motor, rotary support, etc. The rotation of the fixture can meet the welding requirements of all welding points and improve efficiency.
Technical Parameters:
Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
