| Product Name: | Spot Welding Machine For Stainless Steel | Application: | Heater Housing Welding |
|---|---|---|---|
| Function: | Sheet Metal Spot Welding | Machine Type: | Pneumatic |
| Keyword: | Welding Machine Prices | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Feature: | Microcomputer Digital Control | Warranty: | 12 Months Guarantee |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Steel Metal Spot Welding Gun,Pneumatic Semi Automatic Welding Machine,Microcomputer Digital Control Automatic Welder |
||
Steel Metal Spot Welding Gun Semi-Automatic Welding Machine Automatic Welder
Product Description:

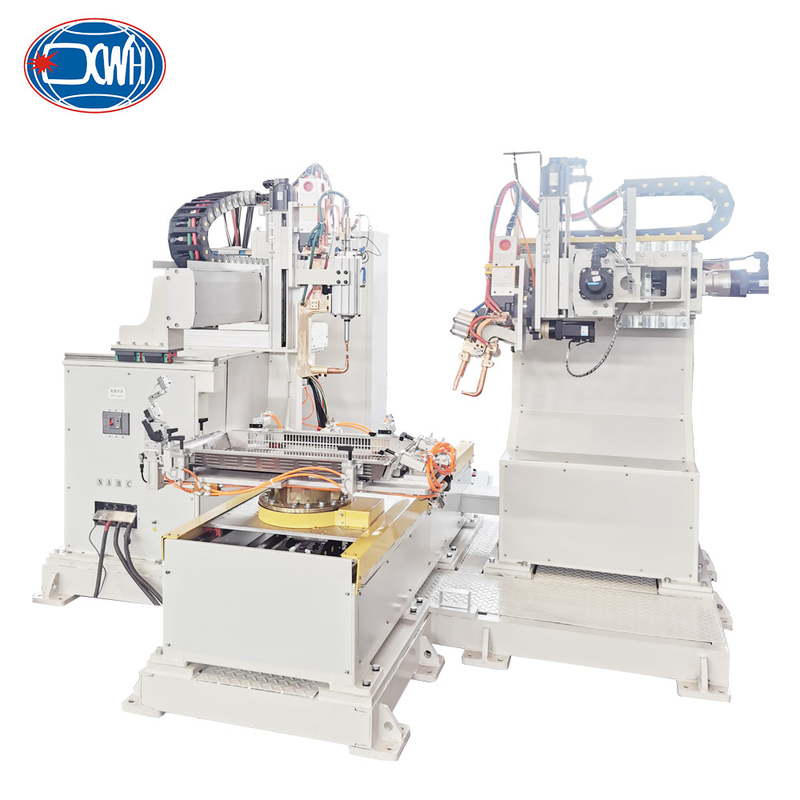

The heater shell welding machine is mainly used for welding the shell, and the welding workpiece is mainly made of carbon steel and stainless steel. By adjusting the positioning block, three types of workpieces can be welded.
Advantages:
1. Control system: composed of main control cabinet, touch screen, and operation box. The main control cabinet is placed independently, and the touch screen is installed on the fence. This device is equipped with a three color light sound and light warning device.
2. X-type welding clamp moving mechanism: composed of linear module, servo motor, rotating platform, X-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing. The rotating platform can rotate the welding tongs to the desired angle, making adjustment more convenient and concise.
3. C-type welding clamp moving mechanism: composed of linear module, servo motor, C-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing.
4. Fixture: composed of positioning blocks, clamping cylinders, adjustment plates, etc. This fixture can meet the welding needs of three types of workpieces (positioning blocks need to be adjusted).
Technical Parameters:
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
Workpiece:

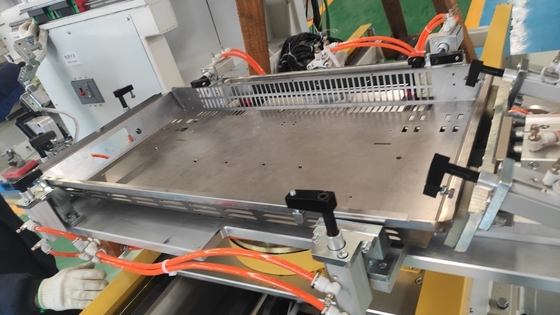

The customized spot welding machine can weld 3 workpieces as long as you adjust the positioning block.
General Structures:
Production Line:
Application:
Daily Maintenance Guide:
1. When checking the internal and external wiring terminals of the equipment, please make sure to first turn off the air switch of the distribution cabinet, cut off all power incoming lines, and strictly prohibit live maintenance. Please pay attention to safety and beware of electric shock;
2. The maintenance, repair, and upkeep of equipment must be carried out by qualified professionals;
3. The place where the equipment is placed should be kept dry, and anti-skid boards should be laid on the ground;
