| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD14000-USD18000 |
| Packaging Details: | Non-fumigation Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Table Spot Welding Machine | Application: | Electrical Panel Box Welding |
|---|---|---|---|
| Function: | Spot Weldinng | Machine Type: | Handheld Portable |
| Keyword: | Welding Spot Machine | Welding Material: | Steel Copper Aluminum |
| Feature: | Portable Welding | Warranty: | 12 Months Guarantee |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Industrial Table Spot Welding Machine,SS Sheet Spot Welding Machine,Rock Arm Table Spot Welder |
||
Electrical Panel Box Resistance Industrial Table Spot Welding Machine For Ss Sheet
Product Introduction:

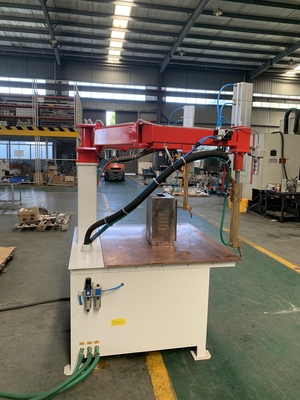

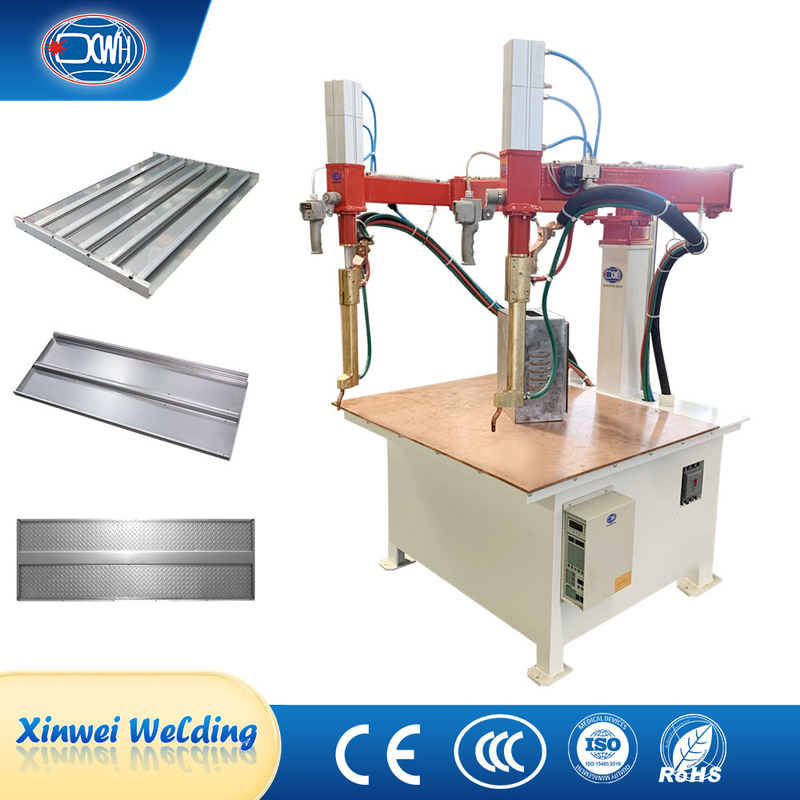

The rock arm spot welder is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.
Advantages:
1. Easy operation: The lower electrode is a welding electrode platform, and the workpiece can be directly placed on the platform for welding.
2. Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency.
3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Production Line:
Application:
FAQ:
