| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 |
| Price: | USD30000-USD40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Spot Welder Oil Fuel Tank Welding Machine | Application: | Oil Tank Welding Machine |
|---|---|---|---|
| Function: | Spot Welding | Machine Type: | Multi Point Projection Spot Welding Machine |
| Keyword: | Multi-Point Spot Welding Machine | Welding Material: | Galvanized |
| Feature: | Stationary Welding Machine | Warranty: | 12 Months Guarantee |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | Multi Point Projection Multi Spot Welders,Fuel Tank Multi Spot Welders,Stationary Multi Spot Welders |
||

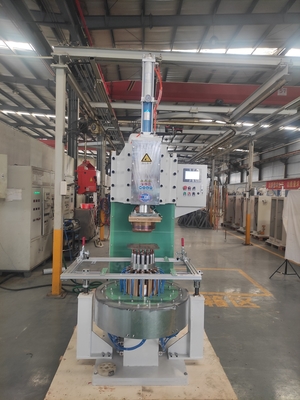

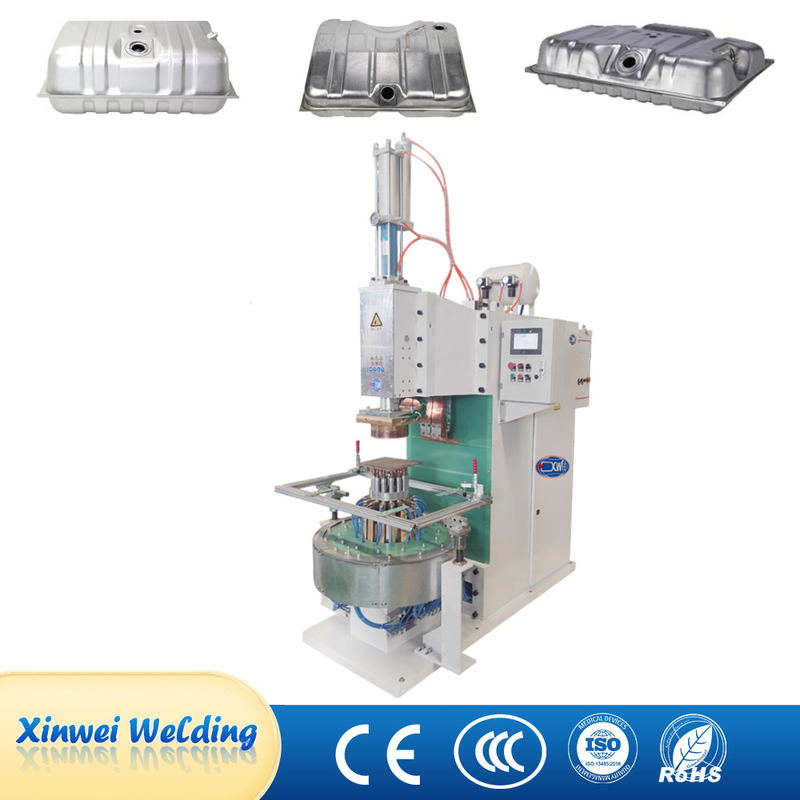

Stationary Multi-Point Projection Multi Spot Welders Welding Machine Fuel Tank Welder
Product Introduction:
The 14 point welding machine is mainly used for car welding fuel tanks, consisting of welding equipment host, welding power supply system, and electrical control system components. Equipment ruler: length 2360 * width 1390 * height 2785. Equipment weight: approximately 800kg.
Features:
1. The upper electrode is pressurized by an auxiliary cylinder, which makes stroke adjustment convenient and accurate, making the workpiece operation stroke continuously adjustable.
2. The spare dedicated gas storage tank for welding machines is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
3. The upper electrode moves vertically up and down in the linear guide rail, with high precision in repeated positioning. So as to make the solder joints accurate.
4. The number of welding steps and the number of welding points per step can be adjusted arbitrarily, and the welding parameters for each step can be set separately. It can be flexibly set according to the product current requirements to improve efficiency.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Workpiece:
Production Line:
Application:
FAQ:
