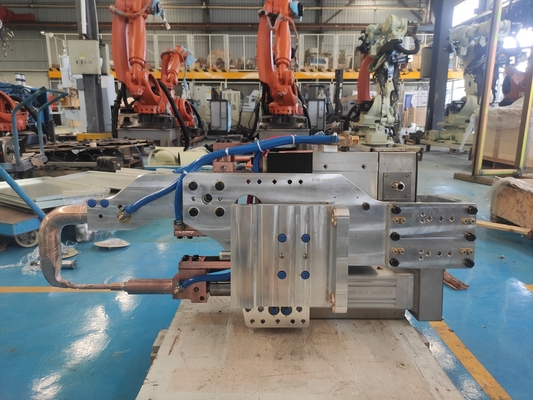

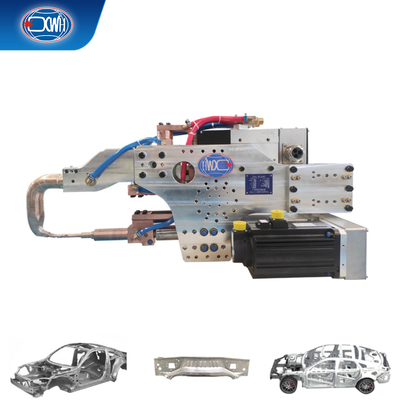

Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3-100, DB3-160
Minimum Order Quantity: 1
Price: USD8500-USD12000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Heavy Duty Robot Spot Welding Gun C Type Application: Automobile Industry
Function: Auto Body Welding Keyword: Robot Spot Welding Gun
Driving Mode: Servo Driving Welding Material: Steel Aluminum
Advantage: High Speed Stability Feature: High Working Efficiency
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Industrial Automatic Robot Spot Welding Gun

,

Heavy Duty Robot Spot Welding Gun

,

Mfdc Resistance Robot Spot Welding Gun


Product Description

Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type







Product Introduction:



Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.







Advantages:



1. The welding tongs can be used with integrated electric cylinders and combined servo electric cylinders at the same time.

2. Self-made transformer, compact structure, there are two series of 1000HZ/2000HZ.

3. Aluminum structure of welding tongs, light weight.

4. X, C type clamp body has a high degree of standardization, interchangeability can reach 80%, which can reduce the reserve of spare parts.

5. The clamp body has good rigidity, and the electrode pressure can reach 600kg, which can meet the needs of high current welding.

6. Easy to disassemble and maintain.







Technical Parameters:



Models/Item unit DB3-100 DB3-160

Transformer’ s Rated Capacity
KVA 100 160

Primary Power
V 500V 1000Hz 500V 1000Hz

Max Shortcut Current
KV 1.6 2.2

Max Gun Mouth Current’s Open
MM 150 250

Max Electrode Pressure
N 4000 4500

Cooling Consumption
L/min 15 15

Arm Material


CuCrZr

CuCrZr

Connecting Way Robot
  Up, down,left,right,backward Up, down,left,right,backward

Servo motor
  KUKA,ABB,Delta
KUKA,ABB,Delta

Welding thickness
MM 0.8+0.8,1.2+1.2,1.5+1.8 0.8+0.8,1.2+1.2,2+2,2.5+2.5







Drawings:

Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 0

X-type robot welding guns: mainly used for welding flat surfaces, with an arc-shaped current. This is due to the X-shaped welding pliers, which have a longer throat depth. The welding area that can be penetrated is longer.





Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 1

C-type robot welding guns: mainly used for vertical welding. The spot welding position is a vertical or near vertical area. The throat width of C-type welding pliers has requirements for the size of the processed parts. C-type welding pliers can also be divided into single stroke and double stroke.







Scene Images:



Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 2







Application:



Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 3

FAQ:



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.




Company Profile:

Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 4Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 5Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 6
Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 7
Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 8
Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type 9
