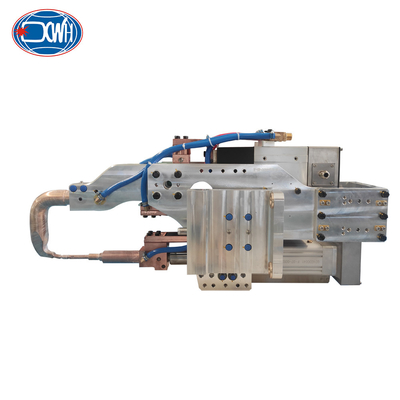

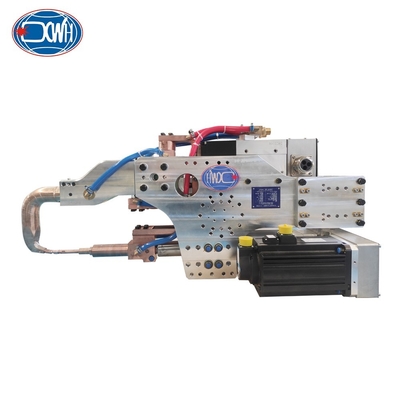

Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3-100, DB3-160
Minimum Order Quantity: 1
Price: USD8500-USD12000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Automatic C Type Of Robot Spot Welding Gun Application: Automobile Industry
Function: Auto Body Welding Keyword: Robot Spot Welding Gun
Driving Mode: Servo Driving Welding Material: Steel Aluminum
Advantage: High Speed Stability Feature: High Working Efficiency
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Automatic Robot Spot Welding Gun

,

C Type Robot Spot Welding Gun

,

Automat Automotive Resistance Welder


Product Description

Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun







Product Introduction:



Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.







Advantages:



1. Welding tongs mainly consist of transformers, cylinders or servo motors, welding arms, floating balance devices, welding tongs brackets, and other parts;



2. The welding pliers adopt a modular design and can be equipped with different power frequency or intermediate frequency transformers. The actuator adopts cylinders or servo motors with different stroke and pressure, which can adapt to various combinations of different requirements;



3. The welding arm is made of high-strength chromium copper cold bending or alloy aluminum plate or strong brass casting to ensure structural strength;



4. The mechanical connection with the robot adopts standard interfaces and is compatible with various mainstream robot integrated systems. Special electrical connections can be customized according to customer requirements.







Technical Parameters:



Models/Item unit DB3-100 DB3-160

Transformer’ s Rated Capacity
KVA 100 160

Primary Power
V 500V 1000Hz 500V 1000Hz

Max Shortcut Current
KV 1.6 2.2

Max Gun Mouth Current’s Open
MM 150 250

Max Electrode Pressure
N 4000 4500

Cooling Consumption
L/min 15 15

Arm Material


CuCrZr

CuCrZr

Connecting Way Robot
  Up, down,left,right,backward Up, down,left,right,backward

Servo motor
  KUKA,ABB,Delta
KUKA,ABB,Delta

Welding thickness
MM 0.8+0.8,1.2+1.2,1.5+1.8 0.8+0.8,1.2+1.2,2+2,2.5+2.5







Drawings:

Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 0

X-type robot welding guns: mainly used for welding flat surfaces, with an arc-shaped current. This is due to the X-shaped welding pliers, which have a longer throat depth. The welding area that can be penetrated is longer.





Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 1

C-type robot welding guns: mainly used for vertical welding. The spot welding position is a vertical or near vertical area. The throat width of C-type welding pliers has requirements for the size of the processed parts. C-type welding pliers can also be divided into single stroke and double stroke.







Scene Images:



Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 2







Application:



Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 3

FAQ:



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.




Company Profile:

Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 4Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 5Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 6
Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 7
Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 8
Automat Automotive Resistance Welder Automatic C Type Of Robot Spot Welding Gun 9
