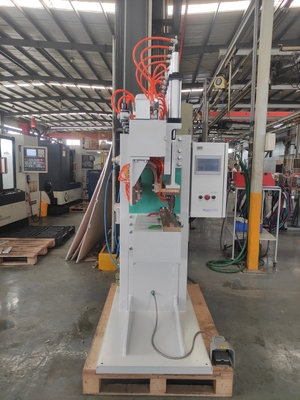

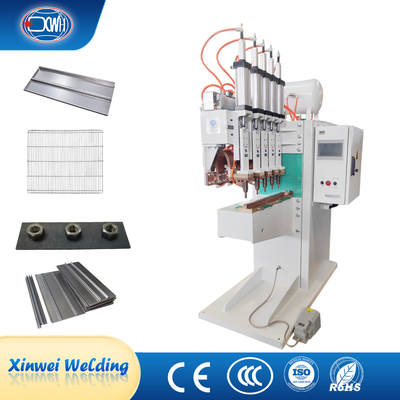

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD13000-USD15000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

Application:

Metal Plate Spot Welding

Function:

Metal Spot Welding Machine

Machine Type:

Resiatance Welding Machine

Keyword:

Multi Head Spot Welding Machine

Welding Material:

Steel Copper Aluminum

Feature:

High Production Efficiency

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Aluminium Multi Head Spot Welding Machine

Multi Head Spot Welding Machine

Multi Point Spot Welder

Product Description

Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

Product Introduction:

Multi head spot welding machine is an efficient welding equipment that uses multiple electrodes to weld simultaneously, greatly improving production efficiency. This welding method is suitable for large-scale production and can weld multiple fusion nuclei at once, which is several times to tens of times faster than ordinary spot welding machines, significantly improving productivity.

Features:

(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;

(2) The upper electrode moves vertically up and down, and has a smooth adjusting working stroke and auxiliary stroke. The lower electrode can be adjusted in a vertical direction;

(3) The straight solenoid valve is adopted to accelerate the reaction speed, greatly improve the operating speed of the upper head, and reduce the air flow loss;

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine 0

Production Line:

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine 1

Application:

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
