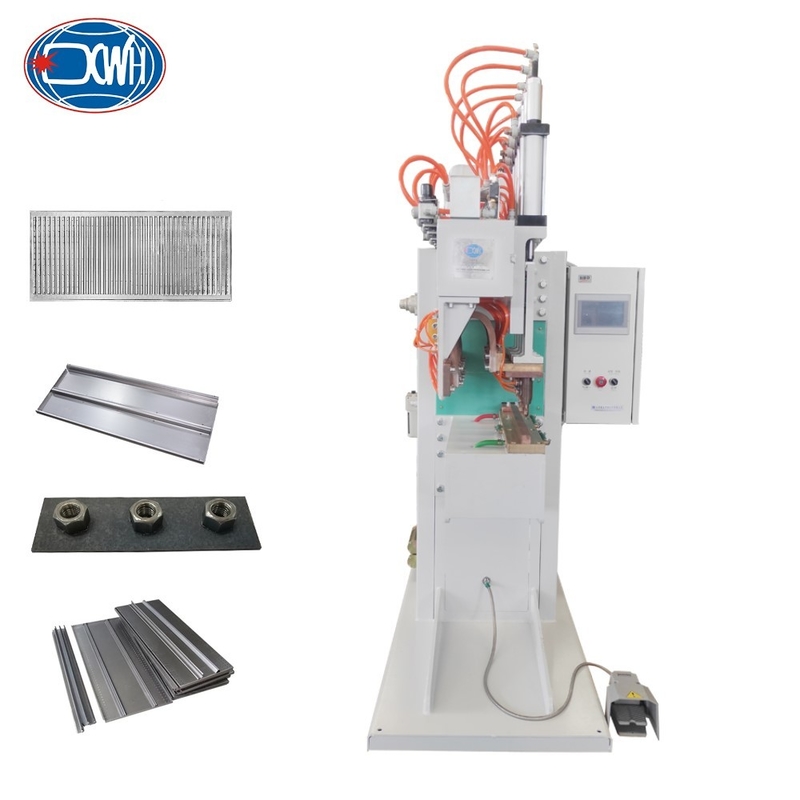

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD13000-USD15000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine

Application:

Resistance Spot Welding Equipment

Function:

Metal Sheet Projection Weldinng

Machine Type:

Pneumatic Projection Welding Machine

Keyword:

Multi Point Spot Welding Machine

Welding Material:

Metal Sheet

Feature:

Stable Welding Current

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Multi Head Spot Welding Machine

Multi Electrode Spot Welding Machine

Resistance Spot Welding Machine

Product Description

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine

Product Introduction:

Multi head spot welding machine is an efficient welding equipment that uses multiple electrodes to weld simultaneously, greatly improving production efficiency. This welding method is suitable for large-scale production and can weld multiple fusion nuclei at once, which is several times to tens of times faster than ordinary spot welding machines, significantly improving productivity.

Features:

(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;

(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;

(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;

(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;

(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity;

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

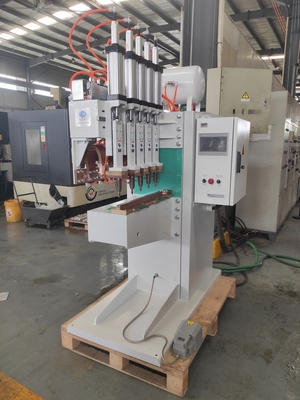

General Structures:

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine 0

Production Line:

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine 1

Application:

Spot Welder Multi-Spot Multi-Electrode Resistance Multi Head Spot Welding Machine 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
