Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD13000-USD15000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine

Application:

Metal Plate Spot Welding

Function:

Projection Welding

Machine Type:

Resistance Spot Projection Welding

Keyword:

Multi Spot Welding Machine

Welding Material:

Stainless Steel

Feature:

Projection Spot Welding

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Point Spot Welding Machine

Multi Head Spot Welding Machine

Stainless Steel Sheet Metal Spot Welder

Product Description

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine

Product Introduction:

Multi head spot welding machine is an efficient welding equipment that uses multiple electrodes to weld simultaneously, greatly improving production efficiency. This welding method is suitable for large-scale production and can weld multiple fusion nuclei at once, which is several times to tens of times faster than ordinary spot welding machines, significantly improving productivity.

Features:

1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.

2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.

3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.

4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on.

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

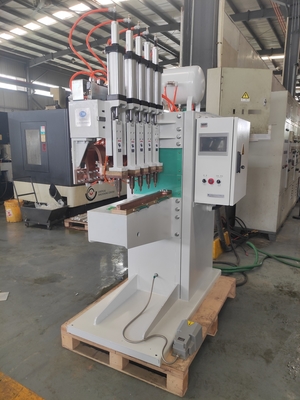

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine 0

Production Line:

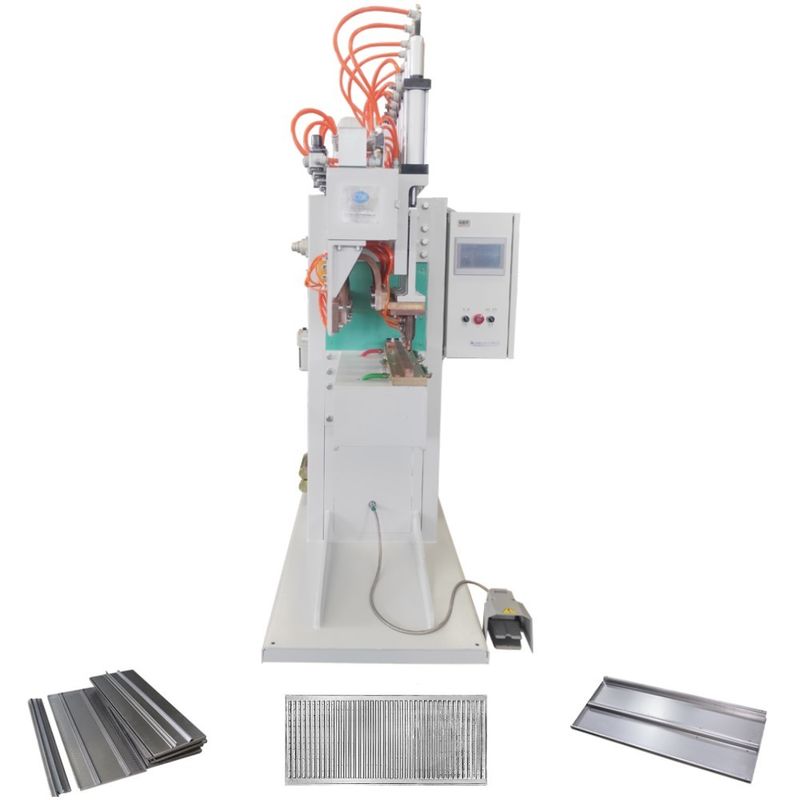

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine 1

Application:

Stainless Steel Sheet Metal Spot Welder Multi Head Point Spot Welding Machine 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
