Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD13000-USD15000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine

Application:

Metal Plate Spot Welding

Function:

Double-sided Spot Welding

Machine Type:

Resistance Spot Projection Welding

Keyword:

Pneumatic Spot Welding

Welding Material:

Metal Aluminum Stainless Steel

Feature:

Panel Microcomputer Control

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Multi Point Spot Welding Machine

Dc Resistance Spot Welding Machine

Projection Aluminum Spot Welding Machine

Product Description

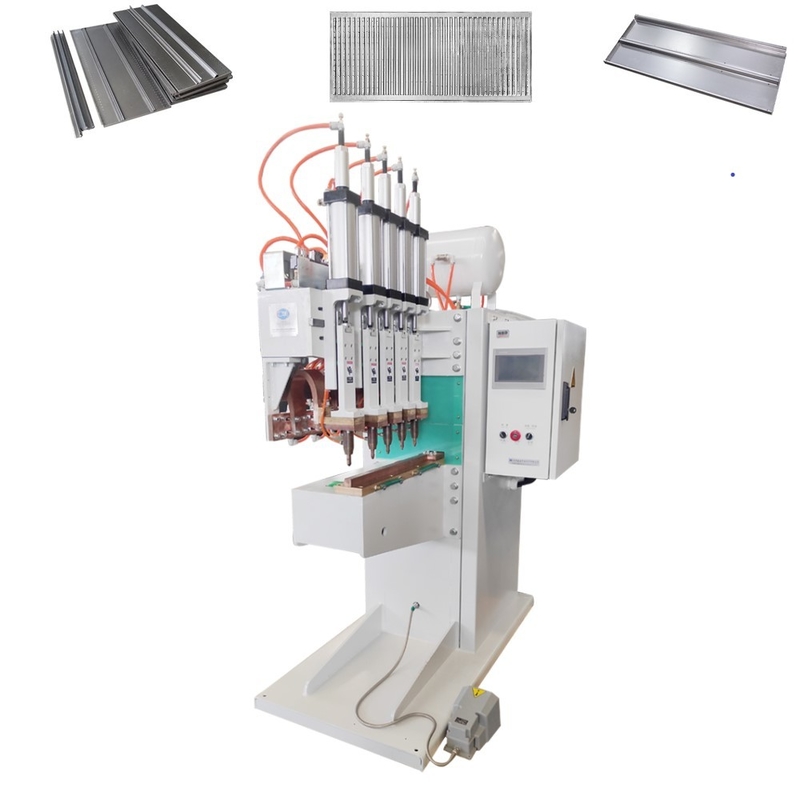

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine

Product Introduction:

Multi head spot welding machine is an efficient welding equipment that uses multiple electrodes to weld simultaneously, greatly improving production efficiency. This welding method is suitable for large-scale production and can weld multiple fusion nuclei at once, which is several times to tens of times faster than ordinary spot welding machines, significantly improving productivity.

Features:

1. High efficiency: By working with multiple electrodes simultaneously, multiple weld nuggets can be welded at once, greatly improving production efficiency.

2. High degree of automation: Multi spot welding machines support semi-automatic or automatic program control, which can be adjusted according to different production needs.

3. Strong professionalism: Each multi-point welding machine is usually only suitable for welding one type of workpiece, so the equipment has high professionalism.

4. Structural characteristics: Multi point welding machines are usually composed of a body, a solder mask transformer, a welding gun, a worktable, a pressurization system, a cooling system, and a control system. The design of the fuselage is determined based on the shape and size of the workpiece, the required number of fusion nuclei, and the process procedures for completing these fusion nuclei.

5. Application areas: Multi head spot welding machines are widely used in industries that require large-scale production, such as automobile manufacturing, electronic product manufacturing, etc.

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

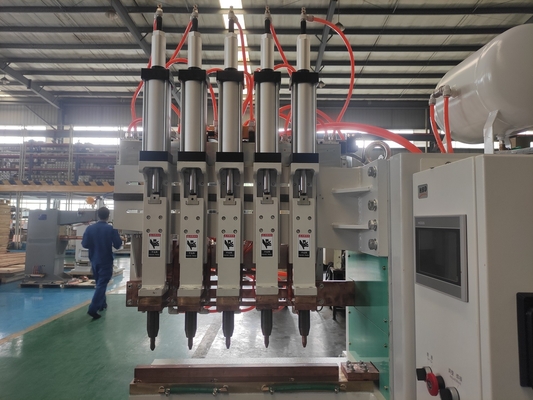

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine 0

Production Line:

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine 1

Application:

Projection Aluminum Dc Resistance Spot Welders Multi Point Spot Welding Machine 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
