Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD13000-USD15000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine

Application:

Metal Plate Spot Welding

Function:

Double-sided Spot Welding

Machine Type:

Resistance Spot Projection Welding

Keyword:

Pneumatic Spot Welding

Welding Material:

Metal Aluminum Stainless Steel

Feature:

Panel Microcomputer Control

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Press Welders Projection Spot Welder

Multi Point Projection Spot Welder

Multi Point Spot Welder

Product Description

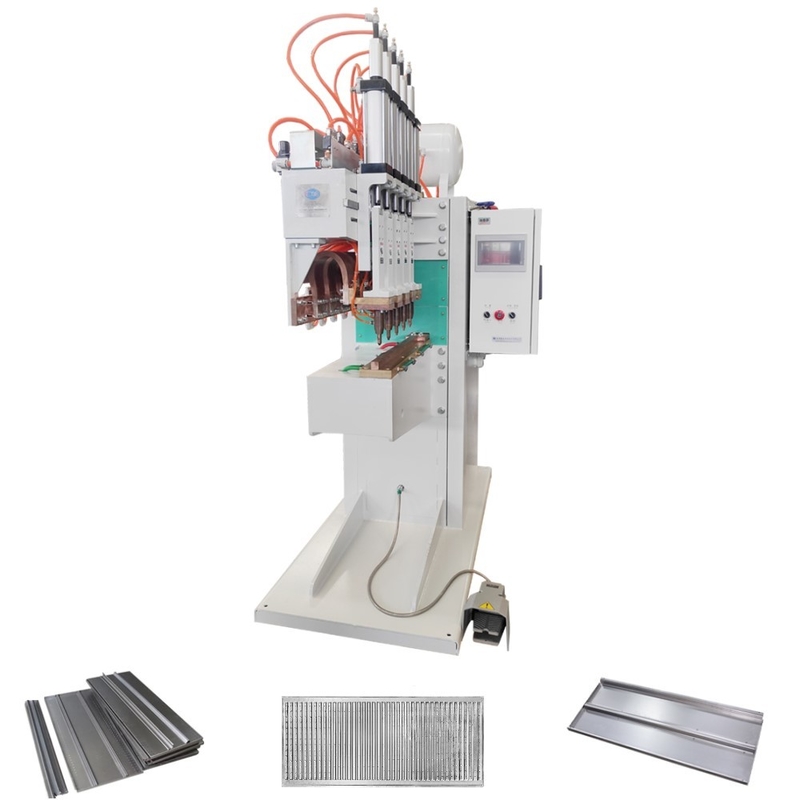

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine

Product Introduction:

The five heads special welding machine belongs to multi head spot welding machine, is mainly composed of components such as the main frame, pneumatic transmission mechanism, upper electrode, welding transformer, welding controller, and water and gas circuit system. The five welding heads can work simultaneously or gradually, or can be controlled separately. Excellent welding quality and high welding efficiency. Widely used in sheet metal processing, metal mesh, automotive manufacturing, and home appliance manufacturing industries.

Features:

1. The overall structure of the machine adopts a single tree style, and the body is designed for impact resistance, earthquake resistance, and high rigidity. Through precise mechanical processing, it meets the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use, ensuring minimal deformation during the welding process, ensuring the stability of the welding and the safety of manual use.

2. The upper electrode is pressurized with an auxiliary cylinder, making stroke adjustment convenient and precise, allowing for continuous adjustment of the workpiece operation stroke.

3. Backup dedicated gas storage tank for welding machine, which is conducive to reducing welding pressure fluctuations and ensuring stable welding force.

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

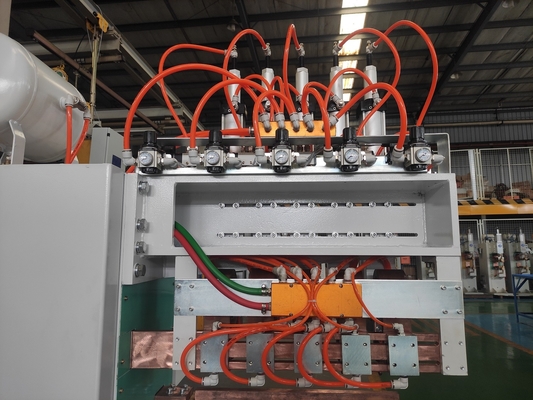

General Structures:

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine 0

Production Line:

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine 1

Application:

Stationary Projection Spot Welder Press Welders Multi Point Spot Welding Machine 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
