Pneumatic Spot Welding Multi Point Welder for Resistance Stainless Steel and Aluminium Double-sided Welding

Resistance Stainless Steel Aluminium Multi Point Welder Spot Welding Machine

Product Introduction:

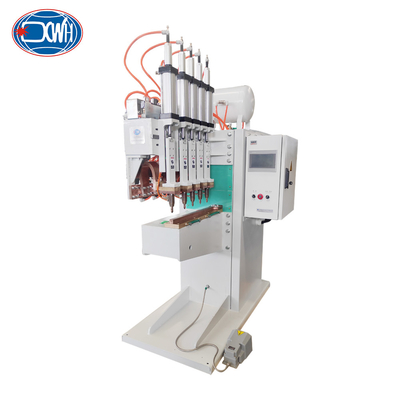

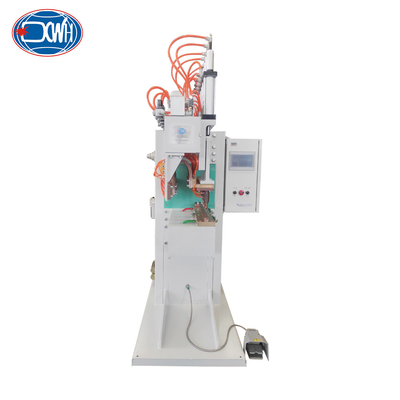

The five heads special welding machine belongs to multi head spot welding machine, is mainly composed of components such as the main frame, pneumatic transmission mechanism, upper electrode, welding transformer, welding controller, and water and gas circuit system. The five welding heads can work simultaneously or gradually, or can be controlled separately. Excellent welding quality and high welding efficiency. Widely used in sheet metal processing, metal mesh, automotive manufacturing, and home appliance manufacturing industries.

Features:

1. The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.

2. The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

3. Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low resistance sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.

4. Capacitive charging and discharging have fast speed, short welding time, and high efficiency.

5. Configure an electrical proportional valve to accurately adjust welding pressure.

6. Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.

7. Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

8. All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

9. The operation is controlled by a foot switch, which has high production efficiency, low labor intensity, and conforms to the operating habits of operators.

10. The equipment is equipped with air pressure and water pressure switches and alarms, which can effectively prevent water shortage or gas welding, thereby protecting the safety of equipment use.
