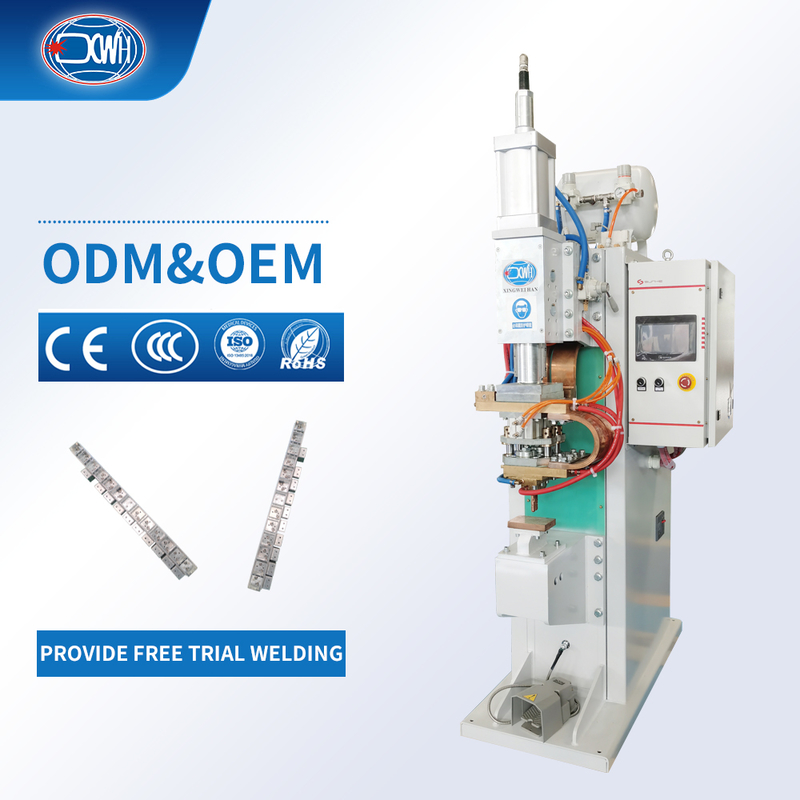

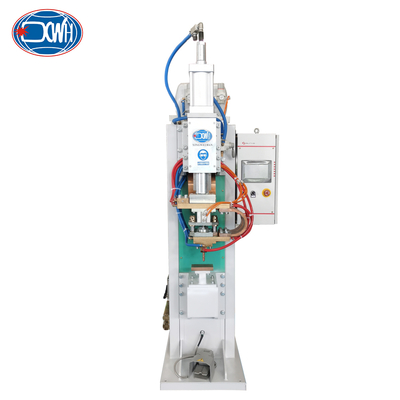

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Brand Name:	Xingweihan
Model Number:	D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250
MOQ:	1
Price:	USD10000-USD12000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Application:

Galvanized Tube Welding

Function:

Resistance Welders

Machine Type:

Spot Welding Machine For Metal

Cooling Method:

Water Cooling

Welding Material:

Metal Aluminum Stainless Steel

Feature:

Welding Machine Spot Welding

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

multi point resistance spot welder

galvanized tube welding machine

multi head spot welder with warranty

Product Description

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Product Introduction

This high-performance production engine enhances the welding capacity of galvanized pipes. Its core advantage lies in the use of dual guns and synchronous welding. Using two customized welding heads that have undergone precise calculations, it can complete high-quality spot welding of two key positions simultaneously in a single operation cycle, doubling efficiency compared to traditional single-head equipment.

The sturdy gantry frame and customized electrode fixture ensure high repeatability and consistency of welding points even under long-term high load operation. Optimized welding parameters for galvanized materials effectively overcome difficulties caused by low zinc layer resistivity, producing strong and aesthetically pleasing weld nuggets. Operators only need to complete simple loading/unloading, while the machine delivers stable, reliable output with precise rhythm - an indispensable capacity multiplier for large-scale production lines.

Features

The machine's tree-style structure features impact-resistant, earthquake-resistant, high-rigidity design with precise mechanical processing to meet component installation and load strength requirements. Internal reinforcing ribs minimize deformation during welding, ensuring stability and safety.
Upper electrode moves vertically in linear guides with high precision repeat positioning for accurate welding points.
Electrode pressurization is smooth and fast, using aluminum alloy cylinder barrels with low-damping sealing rings and light friction ring combination cylinders. Equipped with pilot high-flow electromagnetic directional valves for fast response and sensitive follow-up performance, achieving extremely high dot speed.
Capacitive charging/discharging provides fast speed, short welding time, and high efficiency.

Technical Parameters

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures

Detailed Components

The Upper Electrode: After startup, automatically loads, welds, and unloads for fully automated operation. Custom dual welding heads enable synchronous welding for improved efficiency.

The Pressure Component: Adjustable descent/ascent speed reduces pressure impact on workpieces and minimizes noise.

Gas Storage Tank: Dedicated tank reduces welding pressure fluctuations for stable welding force.

Waterway Components: Rust-proof surface treatment with independent drainage for easy blockage observation.

Scene Images

Application

Frequently Asked Questions

When can you arrange shipment?

Shipment is 15 days after receiving deposit, but customized machines require more than 25 days.

Do you inspect the finished products?

Yes, each production step undergoes inspection by our QC department before shipping.

Are you factory?

Yes, we are the factory manufacturing all machines and can provide customized services according to your requirements.

How to buy your Spot Welder?

Please send inquiry to our email, and we will provide a PI for payment.

How to contact you?

You can email or call us directly.

How will you deliver my goods to me?

We ship by both air and sea freight.

How about your transport packing? Is it possible to damage the machine during transportation?

We have extensive international shipping experience. All packing uses extra-thick cartons with protective PE foam and waterproof membrane. No damage has occurred during transportation to date.

What kind of payment do you accept?

We accept T/T, Western Union, PayPal, L/C, D/A, etc.
