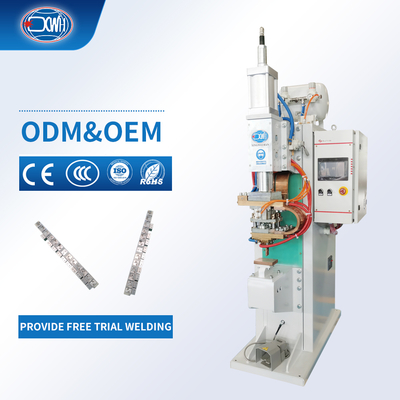

Metal Pneumatic Resistance Welder Multi Spot Welding Machine For Galvanized Tube

Metal Pneumatic Resistance Welder Multi Spot Welding Machine For Galvanized Tube

Brand Name:	Xingweihan
Model Number:	D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250
MOQ:	1
Price:	USD10000-USD12000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Metal Pneumatic Resistance Welder Multi Spot Welding Machine For Galvanized Tube

Application:

Welding Galvanized Tube

Function:

Multi Point Spot Welding Machine

Machine Type:

Resistance Welding Machine

Cooling Method:

Water Cooling

Welding Material:

Aluminum Galvanized Stainless Steel Copper

Feature:

Resistance Welder

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

metal pneumatic spot welder

multi spot welding machine

galvanized tube welder

Product Description

Metal Pneumatic Resistance Welder Multi Spot Welding Machine For Galvanized Tube

Product Introduction

We understand that the core of production is to reduce costs and increase efficiency, and this customized dual head spot welding machine is a perfect embodiment of this concept. It has no redundant complex functions, and all designs revolve around practicality, reliability, and fast cost recovery.

The dual head fixed structure avoids expensive robotic arms or moving mechanisms, achieving ultimate cost control while achieving production efficiency equivalent to two devices. Pneumatic pressurization provides stable and powerful operation. The optimized circuit design results in lower energy consumption.

For galvanized pipe welding challenges, we've pre-set mature process parameters verified through extensive experiments. Operators require minimal training, reducing reliance on senior technicians and labor costs. Its compact, durable design makes it ideal for small and medium-sized enterprises looking to enhance competitiveness.

Features

Independent fine-tuning and intelligent control: Two sets of intelligent controllers allow millisecond-level adjustments to current, time, and pressure, ensuring consistent two-point welding quality.
Quality traceability: Built-in data storage records core welding parameters for quality analysis and lean production management.
Multiple protection systems: Includes solder joint counting, overheating alarms, and current monitoring to prevent defective production.
Expert process presets: Multiple parameter libraries for different galvanized pipe specifications prevent human error.
Low spatter technology: Uses advanced MFDC welding technology for cleaner welds with minimal spatter.

Technical Parameters

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

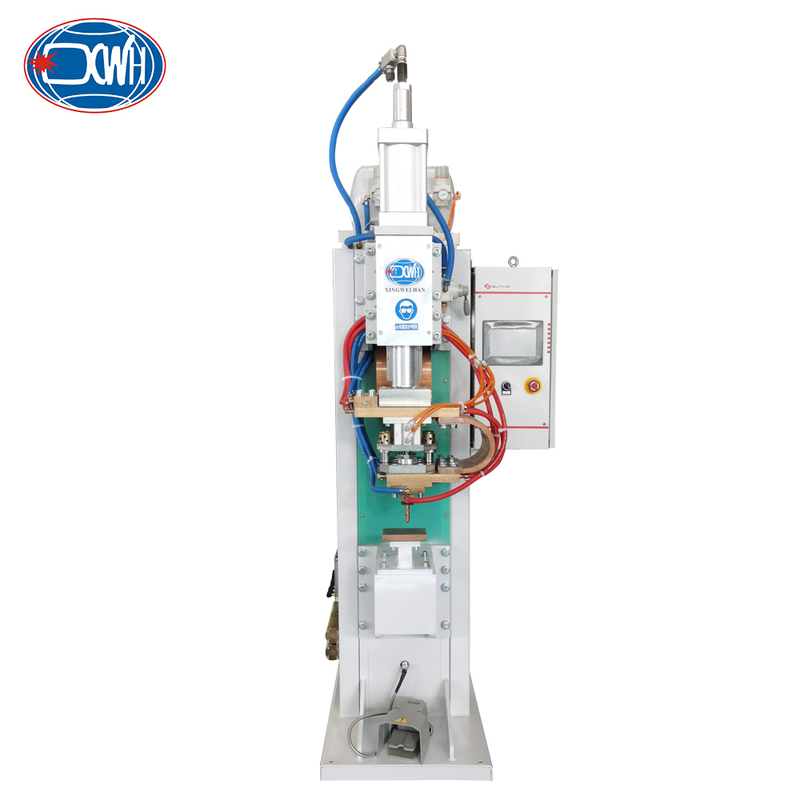

General Structures

Detailed Components

Double head synchronization, doubled efficiency: The two welding gun heads are precisely calibrated to simultaneously complete two high-quality welding points in a single operation cycle.

The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

The spare dedicated gas storage tank for welding machines reduces welding pressure fluctuations and ensures stable welding force.

All waterway components undergo surface treatment to prevent rusting, with independent drainage for easy blockage observation.

Scene Images

Application

Frequently Asked Questions

1. When can you arrange shipment?

The shipment is 15 days after getting deposit, but customized machines should be more than 25 days.

2. Do you inspect the finished products?

Yes, each step of production products will be inspected by QC department before shipping.

3. Are you factory?

Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4. How to buy your Spot Welder?

Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?

You can send a mail for us and call us.

6. How will you deliver my goods to me?

We always ship by air and sea in the mean time.

7. How about your transport packing?

We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane.

8. What kind of payment do you accept?

T/T, Western Union, PayPal, L/C, D/A, etc.
