Pedal Type 35KVA Resistance Spot Welding Machine CCC Approved

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN10
Minimum Order Quantity: 3 Set
Price: $600.00 - $1,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Month
Detail Information
Product Name: Pedal Type Resistance Spot Welding Machine Machine Type: Auto Repair Tools
Rated Capacity: 10--35 KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 72--105KGS Rated Duty Cycle: 50%
Voltage: 380V
High Light:

CCC resistance spot welding machine

,

35KVA resistance spot welding machine

,

35KVA pedal spot welding machine


Product Description

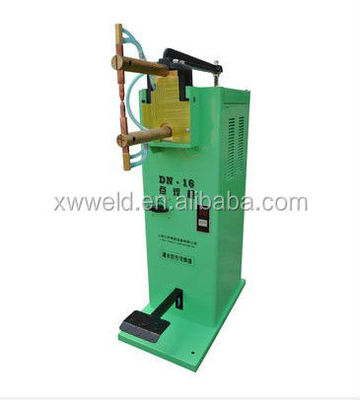

Pedal Type Resistance Spot Welding Machine



(1) Advantages

1. the main transformer has less power loss and the open circuit current is small.

2. pedal-level type spring pressing stucture makes the machine easy to operate and

convenient to maintain.

3. SCR turns on/off electric circuit ensure the machine be turned off quickly and be more

reliable.

4. welding time can be adjusted based on actual needs, and as the result,the welding

also can be well repeated.

5. widely used for welding of welding of low carbon steel,wire stainless steel plate etc.


(2) Main specifications

Model

Item

DN-10 DN-16 DN-25 DN-35

Rated power (KVA )



10 16 25 35

Power Voltage (V)



380 380 380 380

Rated frequency( Hz )



50 50 50 50
Rated Primary Current(A) 26.3 42.1 63 92

Duty cycle(%)



20 20 20 20
Unload Voltage 1.65-2.4 1.98-3.01 2.25-3.58 3.1-5.2

Max welding

capacity

Low-carbens steel (mm) 1.5+1.5 2+2 2.5+2.5 3+3
Weight(kg) 72 82 100 105



Product Description
  • Workflow

    Hot sale DN Pedal Type Resistance Spot Welding Machine



    1. Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.

    2. Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.

    3. Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.

    4. We confirm the accurancy of contract finaly,then we can produce welding machine.











Company Information

Most Popular 220V 380V Portable Suspended Spot Welding Gun

ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.





Most Popular 220V 380V Portable Suspended Spot Welding Gun





This is one of our overseas customers' factories.Most Popular 220V 380V Portable Suspended Spot Welding Gun

Most Popular 220V 380V Portable Suspended Spot Welding Gun



Our company is a manufacturer of welding equipment and has the right to run the import/export business.
We are engaging in this field for over fifteen years.
