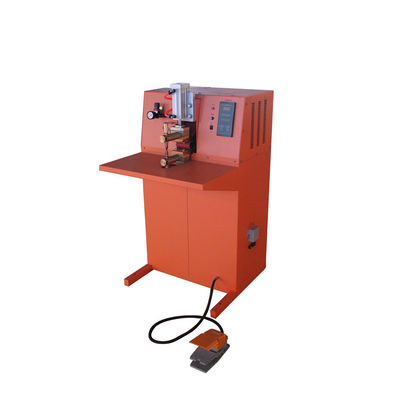

CNC 3 Phases 35KVA Table Spot Welding Machine Mobile Type

CNC 3 Phases 35KVA Table Spot Welding Machine Mobile Type

Brand Name: XWH
Model Number: DNB
MOQ: 1
Price: USD 800-USD 1000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Product Name:
Crank-Arm Flat Table Mobile Type Spot Welder
Frequency:
50HZ/60HZ
Table:
Customized
Electrode Stroke::
80mm
Rated Duty Cycle:
50%
Usage:
Hardware Fittings Manufacturing
Platform Distance:
2000mm
Rated Capacity:
25/35/50 KVA
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

35KVA table spot welding machine

,

3 phases table spot welding machine

,

35KVA mobile spot welding machine

Product Description
Crank-Arm Flat Table Mobile Type Spot Welder

Product Description


Crank-Arm Flat Table Mobile Type Spot Welder have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.



1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.



2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.



3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.



4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.



5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.





S.N Items XW-MF-40K XW-MF-50K XW-MF-75K
1 Input voltage 380V,3 phases 380V,3 phases 380V,3 phases
2 Input current 65A 80A 80A
3 Output voltage 8.5V 10V 12V
4 Max.Welding Current 15000A 18000A 26000A
5 Welding Specification 18 kinds 18 kinds 18 kinds
6 Different Welding Current 6 kinds 6 kinds 6 kinds
7 Effective size of welding platform 800mmx800mm 800mmx800mm 2000mmx800mm
8 Max.range of Crank moving 1000mm 1000mm 1200mm
9 Max.angle of Crank moving 180° 180° 180°
10 Adjusting rang of platform height 0-200mm 0-200mm 0-200mm
