100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder

100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder

Brand Name:	XWH
Model Number:	DNB
MOQ:	1
Price:	USD 800-USD 1000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Product Name:

100KVA Rocker Arm Galvanized Sheet Table Spot Welding Machine

Frequency:

50HZ/60HZ

Power:

100KVA

Voltage:

380V Or 480V Or Custom Made

Rated Duty Cycle:

50%

Usage:

Table Spot Welding

Platform Distance:

2000mm

Rated Capacity:

25/35/50 KVA

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

100KVA table spot welding machine

60Hz table spot welding machine

60Hz rocker arm spot welder

Product Description

100KVA Rocker Arm galvanized sheet Table Spot Welding Machine

Product Description

Main Features

DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine

1. There are two types of Welding Power Source : AC Spot Welding or Medium Frequency inverter DC spot welding;

2. The lower welding electrode is designed level flat table:Welding range increased,the welded workpiece stays

very flat,not deformed,no mark and smooth under welding point;

3. The up welding electrode is designed as Multi-joint arm, welding easily, without moving work piece, only move the welding gun, can weld any position in the range of the down flat table;

4. At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way

it is suitable for welding various shape and size of products;

5. Welding Gun can be made in two types: Vertical Welding or Horizontal Welding,choosed according to

different workpiece,More easily operating and freely, safe and reliable.

Technical parameters

DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine

Rated Capacity: 50KVA~200KVA,

Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz

Air Source Pressure: =0.5Mpa;

Electrode Force: =2.2KN

Welding Table Size:800mm(W) ×1000mm(L);

Welding Table Height: 750~950mm (200mm Stroke);

Welding Gun Type: Horizontal Gun or Vertical Gun

(Optional);

Welding Gun Length: 395mm;

Machine Size : L:1580mm×W:1000mm×H:1900mm;

Machine Weight: 850kg

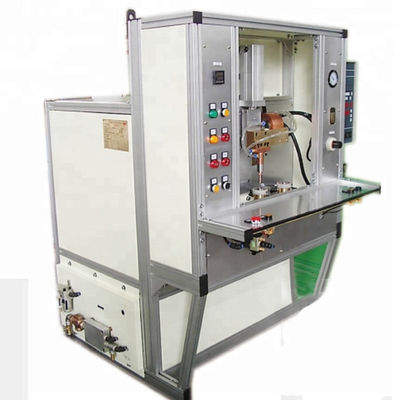

100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder 0
