| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE, ISO |
| Model Number: | DNB |
| Minimum Order Quantity: | 1 |
| Price: | USD 800-USD 1000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

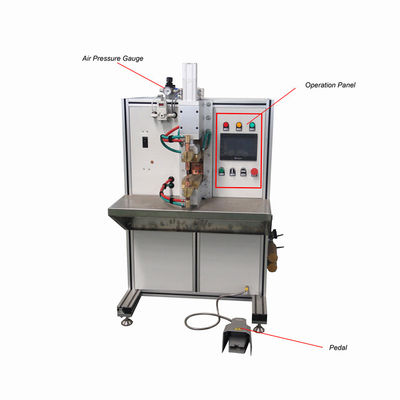

| Product Name: | Double-Head Crank Arm Mobile Medium Frequency Power Source Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Table: | Customized | Electrode Stroke:: | 80mm |
| Rated Duty Cycle: | 50% | Usage: | Hardware Fittings Manufacturing |
| Platform Distance: | 2000mm | Rated Capacity: | 25/35/50 KVA |
| High Light: | 80mm table spot welding machine,ISO table spot welding machine,80mm AC spot welder |
||
Double-Head Crank Arm Mobile Medium Frequency Spot Welding Machine have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
| S.N | Items | XW-MF-40K | XW-MF-50K | XW-MF-75K |
| 1 | Input voltage | 380V,3 phases | 380V,3 phases | 380V,3 phases |
| 2 | Input current | 65A | 80A | 80A |
| 3 | Output voltage | 8.5V | 10V | 12V |
| 4 | Max.Welding Current | 15000A | 18000A | 26000A |
| 5 | Welding Specification | 18 kinds | 18 kinds | 18 kinds |
| 6 | Different Welding Current | 6 kinds | 6 kinds | 6 kinds |
| 7 | Effective size of welding platform | 800mmx800mm | 800mmx800mm | 2000mmx800mm |
| 8 | Max.range of Crank moving | 1000mm | 1000mm | 1200mm |
| 9 | Max.angle of Crank moving | 180° | 180° | 180° |
| 10 | Adjusting rang of platform height | 0-200mm | 0-200mm | 0-200mm |
