| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 1 |
| Price: | $300.00 - $800.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Month |

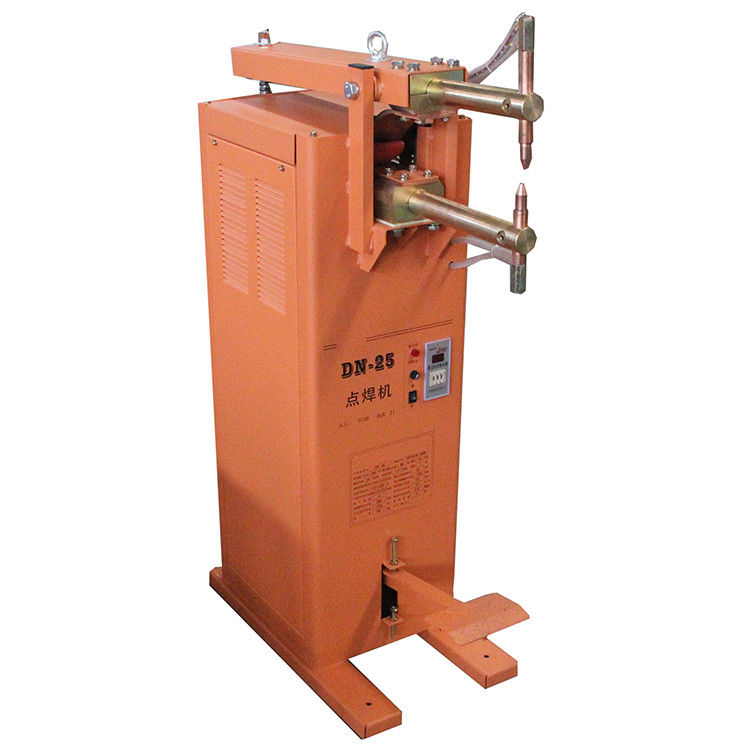

| Product Name: | 10kva Pedal Type Welding Machine Spot Welder For Repair Car Body | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Dimensions: | DN 10/16/25/35 | Welding Time: | 0.1-1S |
| MOQ: | 3 | No-load Voltage: | 1.98-3.01V |
| Machinery Test Repo: | Provided | Power Voltage: | 380V |
| Highlight: | 10kva manual spot welding machine,CE manual spot welding machine,10kva auto body spot welding machine |
||
1. Pedal-level type spring-pressing strcture makes the machine easy to operate and convenient to maintain
2. Thyristor controlled turn on/off electric circuit ensure the machine be turned off quickly and be more reliable.
3. Welding time can be adjusted based on actual needs, and as a result, the welding also can be well repeated
4. Widely used for welding of low carbon steel, wire stainless steel plate etc.
|
RESISTANCE SPOT
|
DN-10
|
DN-16
|
DN-25
|
DN-35
|
|
Rated Voltage/Frequency
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Phase Number
|
1
|
1
|
1
|
1
|
|
Rated Capacity
|
10KVA
|
16KVA
|
25KVA
|
35KVA
|
|
Rated Primary current
|
26.3A
|
42.1A
|
66A
|
92A
|
|
Rated Duty Cycle
|
10%
|
10%
|
10%
|
10%
|
|
Open Circuit Voltage
|
1.65-2.4V
|
1.98-3.01V
|
2.3-3.55V
|
2.6-4.2V
|
|
Adjustable Step Number
|
4
|
4
|
4
|
4
|
|
Weld Time Adjust
|
0-9.99s
|
0-9.99s
|
0-9.99s
|
0-9.99s
|
|
Arm Extension
|
260mm
|
280mm
|
280mm
|
280mm
|
|
Welding Thickness
|
1.5+1.5mm
|
2+2mm
|
2.5+2.5mm
|
3.5+3.5mm
|
|
Main transformer/Cooling Mode
|
air cooling
|
air cooling
|
air cooling
|
air cooling
|
|
Electrode Cooling mode
|
water cooling
|
water cooling
|
water cooling
|
water cooling
|
|
Weight
|
90kg
|
93kg
|
100kg
|
108kg
|
