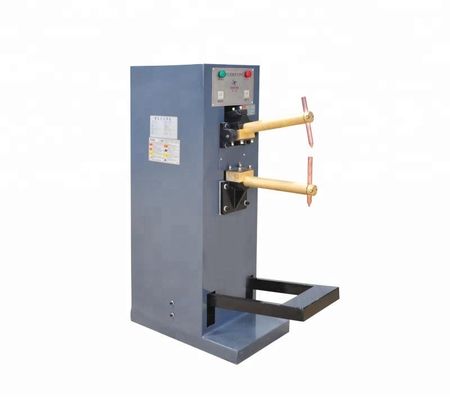

Waterproof Pedal Spot Welding Machine 25KVA Foot Operated Spot Welder

Waterproof Pedal Spot Welding Machine 25KVA Foot Operated Spot Welder

Brand Name: XWH
Model Number: DNB
MOQ: 1
Price: $550.00 - $850.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Pedal Spot Welding Machine Stationary Spot Welding Machine
Machine Type:
Resistance Welding
Weight:
100-140KG
Power:
20-35KVA
Frequency:
50HZ/60HZ
Max. Welding Thickness:
5+5 Mm
Dimensions::
78*44*112cm
Rated Duty Cycle:
20%
Packaging Details:
Wooden Case
Supply Ability:
30 sets/month
Highlight:

25KVA pedal spot welding machine

,

25KVA foot operated spot welder

,

waterproof pedal spot welding machine

Product Description

Pedal Spot Welding Machine Stationary Spot Welding Machine





specification



MOdel NO. DN1-16 DN1-25 DN1-40
Mains voltage 380V 380V 380V
Power 16KVA 25KVA 40KVA
Adjust way Digital dial code Digital dial code Digital dial code
Welding thickness 1.0+1.0mm 1.5+1.5mm 2.0+2.0mm
Weight 100kg 120kg 140kg
Exterior size(mm) 780×440×1120mm 780×440×1120mm 780×440×1120mm





Benefits



Transformer is made of copper and epoxy resins with cooling water and low resistance,low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five yeas because of quality defects.
Adopt the lever pedal spring pressure sturcture,convenient for maintain and repair.
Adopt the digital control system,it's more convenient to adjust the welding time and current.
It can be welded metal durm diameter above 200mm,length 400mm.But also can be customized accoring to request.

Usage


This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.

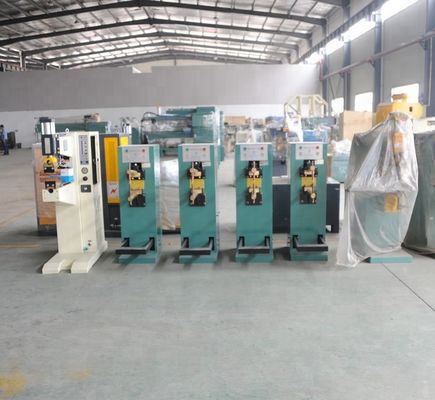

Company Information
