| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 1 |
| Price: | $300.00 - $800.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Month |

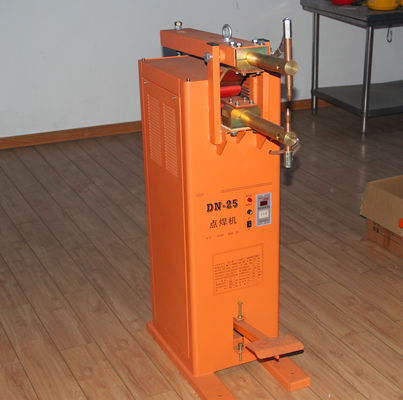

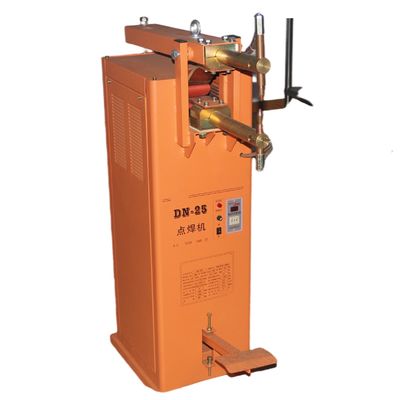

| Product Name: | Welding Mini Spot Welder Foot Operated Spot Welding Machine Manual Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Dimensions: | DN 10/16/25/35 | Welding Time: | 0.1-1S |
| Lead Time: | 3-5days | COLOR: | Customized |
| Machinery Test Repo: | Provided | Size: | 450mm |
| High Light: | 16KVA manual spot welding machine,CE manual spot welding machine,CE foot operated spot welder |
||
|
Models
Item
|
DN-35
|
DN-25
|
DN-16
|
DN-10
|
|
Rated Power at 50%
|
35KVA
|
25KVA
|
16KVA
|
10KVA
|
|
Rated Primary Power
|
380V
|
380V
|
380V
|
380V
|
|
Rated Primary Current
|
92A
|
66A
|
42.1A
|
26.3A
|
|
Rated Duty Cycle
|
10%
|
10%
|
10%
|
10%
|
|
Secondary Unload Voltage
|
2.6～4.2V
|
2.3～3.55V
|
1.98～3.01V
|
1.65～2.4V
|
|
Adjustment Rated
|
4
|
4
|
4
|
4
|
|
Welding Time Adjustment
|
0～9.99s
|
0～9.99s
|
0～9.99s
|
0～9.99s
|
|
Arms Length
|
280mm
|
280mm
|
280mm
|
260mm
|
|
Max. Welding Capacity
|
3.5+3.5mm
|
2.5+2.5mm
|
2+2mm
|
1.5+1.5mm
|
|
Cooling Ways
|
Main Transformer: Air
Electrode: Water
|
|||
