ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: DNB
Minimum Order Quantity: 1
Price: USD 5000-USD 8000
Packaging Details: Wooden Case
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Crank Arm Elevator Plate Metal Sheet Spot Welding Machine Frequency: 50HZ/60HZ
Power: 130KVA Voltage: 380V/220V
Rated Duty Cycle: 50% Usage: Table Spot Welding
Platform Distance: 2000mm Rated Capacity: 25/35/50 KVA
High Light:

200mm table spot welding machine

,

ISO table spot welding machine

,

200mm sheet metal spot welding machine


Product Description

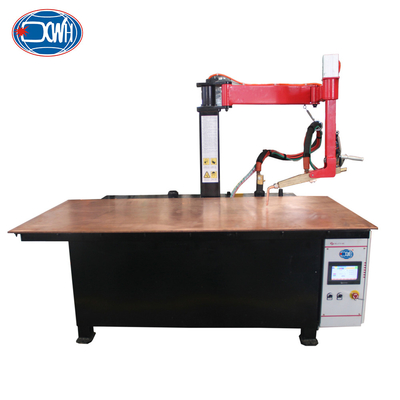

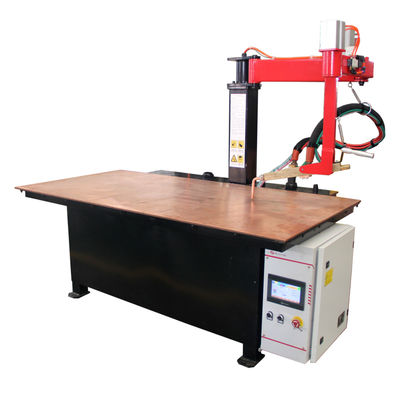

Crank Arm Elevator Plate Metal Sheet Spot Welding Machine

Product Description

Main Features


1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.

2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.

3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.

4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.

5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.




Technical parameters



DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine



Rated Capacity: 50KVA~200KVA,

Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz

Air Source Pressure: =0.5Mpa;

Electrode Force: =2.2KN

Welding Table Size:800mm(W) ×1000mm(L);

Welding Table Height: 750~950mm (200mm Stroke);

Welding Gun Type: Horizontal Gun or Vertical Gun

(Optional);

Welding Gun Length: 395mm;

Machine Size : L:1580mm×W:1000mm×H:1900mm;

Machine Weight: 850kg



ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke 0



Company Information
ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke 1
ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke 2
ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
