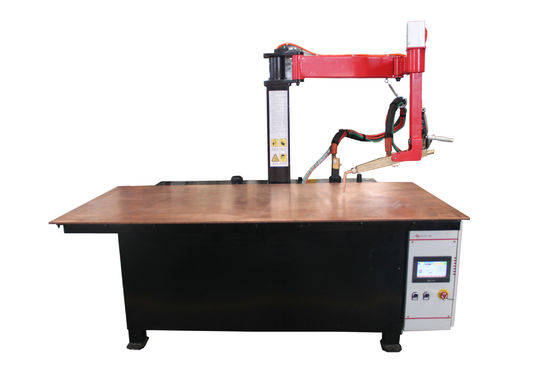

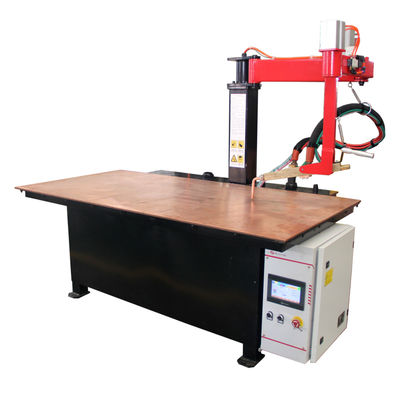

MF Crank Arm 130KVA Table Spot Welding Machine Handheld AC Pulse
Brand Name:
XWH
Model Number:
DNB
Place of Origin:
China
Certification:
CE, ISO
Minimum Order Quantity:
1
Price:
USD 5000-USD 8000
Supply Ability:
500 sets/month
Delivery Time:
10 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
MF crank arm table spot welding machine
,130KVA table spot welding machine
,130KVA handheld spot welding machine
Product Name:
MF Crank Arm Portable Table Hand Spot Welding Equipment
Frequency:
50HZ/60HZ
Power:
130KVA
Voltage:
380V/220V/415V
Rated Duty Cycle:
50%
Usage:
Table Spot Welding
Platform Distance:
1000mm
Rated Capacity:
25/35/50 KVA
Product Description
MF Crank Arm Portable Table Hand Spot Welding Equipment
Product Description
1. Crank arm mobile flat plate spot welder is designed with multiple mobile arms according to the principle of mechanical arm, which can automatically or manually move in order to ensure the precise preset position of welding spot.
2. AC pulse, three-phase secondary rectifying or medium frequency inverter power source are optional to be the welding power source.
Technical parameters
DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
