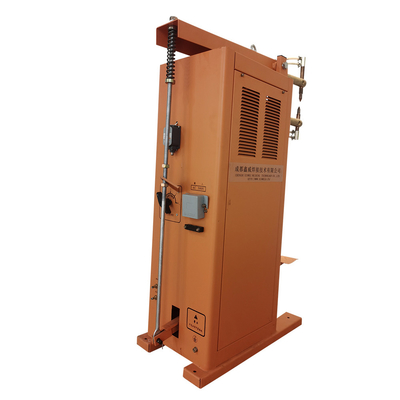

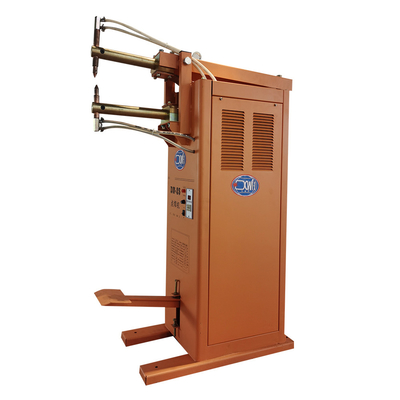

Capacitive Discharge Manual Spot Welding Machine Wire Mesh

Capacitive Discharge Manual Spot Welding Machine Wire Mesh

Brand Name:	XWH
Model Number:	XW
MOQ:	1
Price:	$500.00 - $700.00
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mini Resistance Spot Welding Machine

Voltage:

380V

Keyword:

Welding Spot Machine

Max. Welding Thickness:

3mm+3mm

Applicable Industries:

Manufacturing Plant, Construction Works, Building Material Shops, Machinery Repair Shops, Auto Shop

MOQ:

1 Set

Weight:

70-100kg

Function:

Spot Welding

Packaging Details:

Wooden Case

Supply Ability:

500 Set/Sets per Month

Highlight:

3mm Manual Spot Welding Machine

Wire Mesh Manual Spot Welding Machine

Capacitive Discharge Spotter Welder

Product Description

Spotter Welder Wire Mesh Capacitive Discharge Manual Spot Welding Machine Equipment

Features:

1. It's easy to operate and maintain for the pedal-level type spring-pressing structure.

2. Widely used in automobile, construction, mahinery and so on.

3. The welding time can be adjusted and the welding repeatability is excellent.

Models Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air air cooling Electrode: Water cooling

Capacitive Discharge Manual Spot Welding Machine Wire Mesh 0

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

Certifications

Exhibition Pictures

Service

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on...

Transportation Display

FAQ

1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
