| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN3-16, DN3-25, DN3-35 |
| Minimum Order Quantity: | 1 |
| Price: | USD1000-USD1200 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Pneumatic Welding Machine | Application: | Metal Spot Welding |
|---|---|---|---|
| Function: | Metal Sheet Projection Weldinng | Machine Type: | Pneumatic Spot Welder |
| Keyword: | AC Welding Machine | Welding Material: | Carbon Steel |
| Feature: | Durable | Warranty: | 1 Year Guarantee |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Body Panel Spot Welder Dent Puller,Suction Cup Car Dent Puller |
||

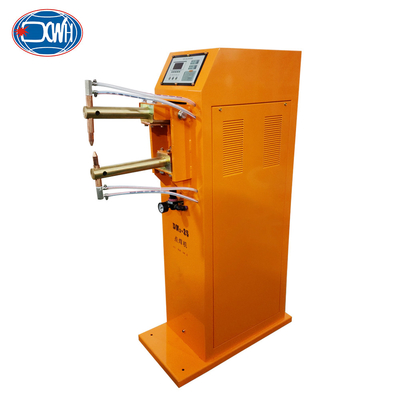

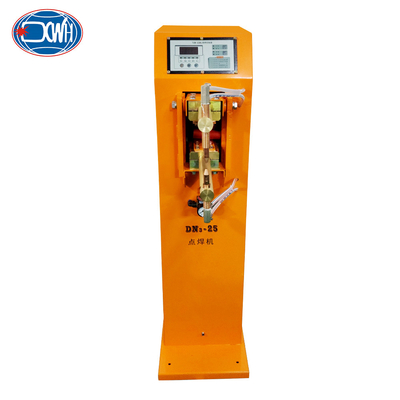

Soldadora De Punto Spot Welder Pneumatic Point Welding Machine For Stainless Steel
Product Introduction:
Pneumatic spot welding machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.
Advantages:
1. Adopting pneumatic control for easier operation, the air source processor controls pressure levels for more stable output
2. The new model adopts a combination of modules and microcomputer controllers, with finer current regulation and excellent thin plate effect
3. Adjustable welding time and good welding repeatability
4. Widely used in automobiles, aviation, construction, machinery, metal products, electrical switches, etc
5. Suitable for welding materials such as low-carbon steel plates, wires, stainless steel plates, etc
Technical Parameters:
|
Product Welding Video
|
We provide technical guidance videos, product welding videos, and samples please contact us. | |||
| Overseas on-site technical team | South America, Southeast Asia,etc | |||
| One-stop service | Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip | |||
|
Models
Item
|
DN3-35
|
DN3-25 | DN3-16 | |
| Rated Power at 50% |
35KVA
|
25KVA | 16KVA | |
|
Rated Primary Power
|
380V | 380V | 380V | |
|
Rated Primary Current
|
92A | 66A | 42.1A | |
| Rated Duty Cycle | 10% |
10%
|
10% | |
|
Model of the Controller
|
TCW-32H
|
TCW-32H | TCW-32H | |
| Adjustment Rated |
1
|
4 | 4 | |
|
Arms Length
|
400mm
|
400mm | 400mm | |
| 280mm | 280mm | 280mm | ||
| Max. Strength at Electrodes | 1400N | 1400N | 860N | |
|
Max. Welding Capacity
|
3+3mm
|
2.5+2.5mm
|
2+2mm | |
| Cooling Way |
MainTansiomer: Air
Electrode: Water
|
MainTansiomer: Air
Electrode: Water
|
MainTansiomer: Air
Electrode: Water
|
|
