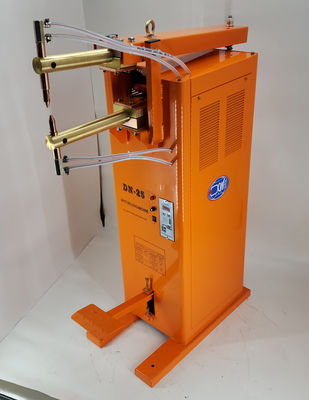

Resistance Mesh Stainless Pedal Welding Machine Foot Operated Spot Welder
Brand Name:
XWH
Model Number:
DN
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Set
Price:
$500.00 - $700.00
Supply Ability:
50 sets/month
Delivery Time:
15 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Stainless Pedal Welding Machine
,Household Pedal Welding Machine
,Resistance Mesh Spot Welder
Product Name:
Foot Operated Spot Welder
Machine Type:
Resiatance Welding Machine
Application:
Sheet Metal Welding
Welding Material:
Alloy Metal Aluminum Stainless Steel
Keyword:
Manual Welding Machine
Certification:
CE
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Product Description
Resistance Mesh Stainless Pedal Welding Machine Foot Operated Spot Welder
Product Description
A pedal type spot welding machine is a device that forms a certain contact resistance between two layers of metal under the pressure of two electrodes. Its working current can reach thousands of amperes to tens of thousands of amperes, and it is the most advanced resistance welding technology so far. It can weld metal plates and wires, and is more suitable for wire, mesh, basket, sheet metal, medium carbon steel, low-carbon steel, stainless steel, titanium alloy, galvanized plate, aluminum alloy, High efficiency and high-quality welding of metal cabinets and other hardware handicrafts.
Technical Parameters
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Advantages
1. It's easy to operate and maintain for the pedal-level type spring-pressing structure.
2. The welding time can be adjusted and the welding repeatability is excellent.
3. Quality Material Selection: The casing is made of high-quality metal material, with a surface treated with spray molding, high hardness, durability.
4. Application: household appliances, kitchen utensils, automobile manufacturing, sheet metal processing, construction steel and other industries.
Detail Images
Images
Please note: the pedal spot welding machine can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
|
Models
Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
