| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN |
| Minimum Order Quantity: | 1 Set |
| Price: | $500.00 - $700.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Pedal Type Spot Welder | Machine Type: | Resistance AC Welding Machine |
|---|---|---|---|
| Application: | Metal Spot Welding | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Keyword: | Foot Switch Spot Welding | Certification: | CE |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | DN35 Foot Operated Spot Welder,DN10 Construction Steel Spot Welder,Pedal Steel Spot Welding Machine |
||
Principle of spot welding machine: A welding method in which the workpiece being welded is pressed between two electrodes and heated to a molten or plastic state using the resistance heat generated by flowing through the contact surface and adjacent areas of the workpiece, forming a joint.

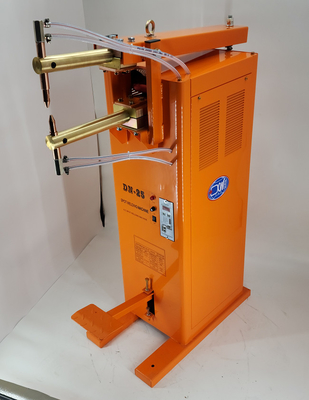

The DN series foot operated spot welding machine uses electrodes to pressurize the welded part while being energized, and uses the Joule heat (instantaneous) generated by the contact resistance between electrodes to melt the metal to achieve the purpose of welding. No need to add any solder, high efficiency, low cost, and other characteristics.
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Advantages

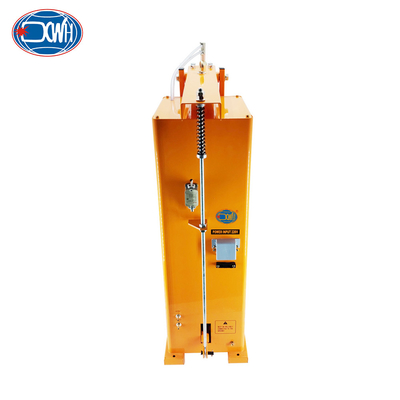

Detail Images
Images
Please note: the pedal spot welding machine can be custom-made according to your requirements.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
|
Models
Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
